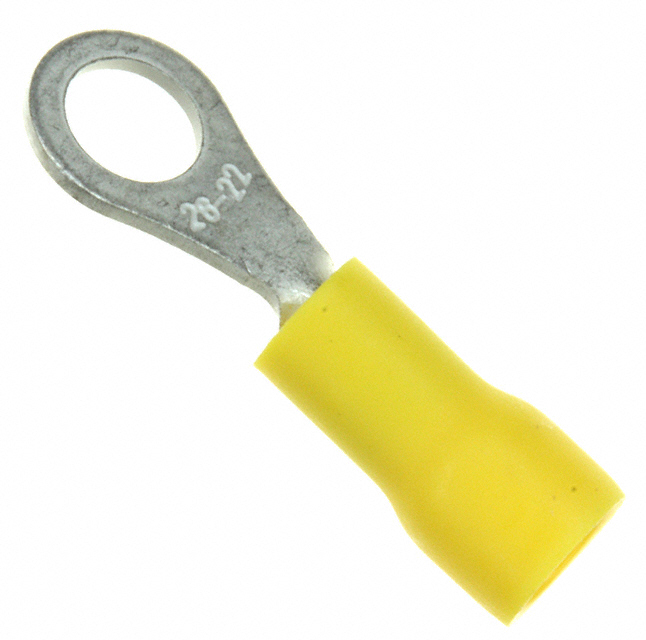

PV22-4R-C
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PV22-4R-C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PV22-4R-C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PV22-4R-C |
|---|---|
| Manufacturer | Panduit |
| Description | CONN RING CIRC 22-26AWG #4 CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PV22-4R-C | Manufacturer | Panduit |
|---|---|---|---|
| Description | CONN RING CIRC 22-26AWG #4 CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4407 pcs | Data sheet | PV22-xxR Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Width - Outer Edges | 0.210" (5.33mm) | Thickness | 0.020" (0.51mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 4 Stud | Series | Pan-Term® |
| Packaging | Bulk | Other Names | 298-10085 PV22-4R-C-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | Vinyl | Length - Overall | 0.680" (17.27mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.110" (2.79mm) |
| Insulation | Insulated | Features | Brazed Seam |
| Detailed Description | Ring Terminal Connector 4 Stud Circular 22-26 AWG Crimp | Contact Material | Copper |
| Contact Finish | Tin | Color | Yellow |
