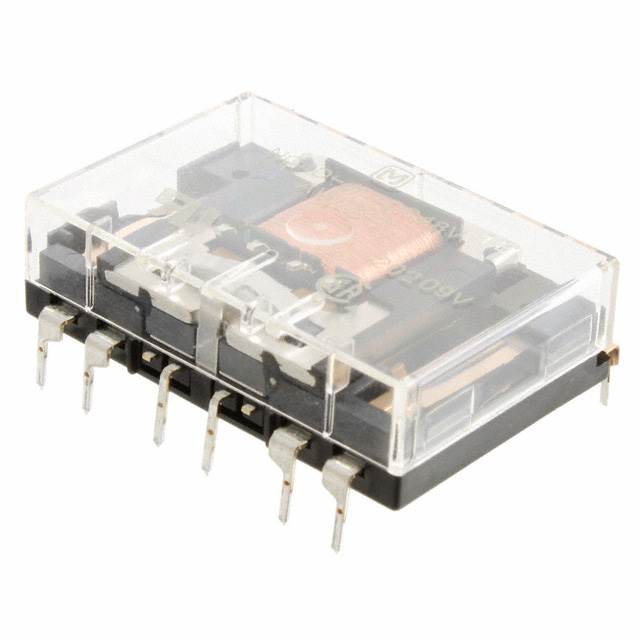

NC4D-JP-DC48V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NC4D-JP-DC48V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NC4D-JP-DC48V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NC4D-JP-DC48V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE 4PDT 5A 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $6.143 | $5.462 | $5.189 | $4.915 | ||
| 100 pcs | 260 pcs | 500 pcs | |||
| $4.642 | $4.233 | $3.96 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NC4D-JP-DC48V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE 4PDT 5A 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7559 pcs | Data sheet | NC Series |
| Category | Relays | Turn On Voltage (Max) | 38.4 VDC |
| Turn Off Voltage (Min) | 4.8 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC - Max | Series | NC |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 255-3446 NC4D-JP-DC48V-ND NC4DJPDC48V |
| Operating Temperature | -40°C ~ 55°C | Operate Time | 20ms |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay 4PDT (4 Form C) 48VDC Coil Through Hole | Contact Rating (Current) | 5A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | 4PDT (4 Form C) |
| Coil Voltage | 48VDC | Coil Type | Non Latching |
| Coil Resistance | 3.2 kOhms | Coil Power | 720 mW |
| Coil Current | 15.0mA |
