MN101CF49KXN

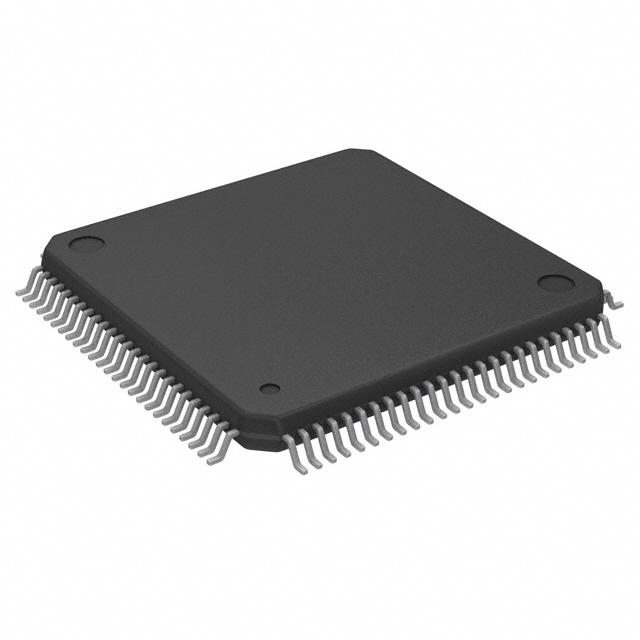

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MN101CF49KXN with confidence from Components-World.HK, 1 Year Warranty
Dowload MN101CF49KXN Details in PDFSee Product Specifications for product details.
Buy MN101CF49KXN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MN101CF49KXN |
|---|---|
| Manufacturer | Panasonic |
| Description | IC MCU 8BIT 224KB FLASH 100QFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $8.211 | $7.595 | $6.979 | $6.486 | $5.953 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MN101CF49KXN | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC MCU 8BIT 224KB FLASH 100QFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6053 pcs | Data sheet | MN101CF49 SeriesMN101C49G, 49H, 49K, F49K, P49K LSI Users Manual |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 2 V ~ 5.5 V |
| Supplier Device Package | 100-QFP (18x18) | Speed | 20MHz |
| Series | AM1 | RAM Size | 10K x 8 |
| Program Memory Type | FLASH | Program Memory Size | 224KB (224K x 8) |
| Peripherals | DMA, PWM, WDT | Packaging | Tray |
| Package / Case | 100-BQFP | Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of I/O | 73 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EEPROM Size | - | Detailed Description | MN101C AM1 Microcontroller IC 8-Bit 20MHz 224KB (224K x 8) FLASH 100-QFP (18x18) |
| Data Converters | A/D 8x10b; D/A 4x8b | Core Size | 8-Bit |
| Core Processor | MN101C | Connectivity | I²C, UART/USART |
| Base Part Number | MN101CF |
