MN112BX

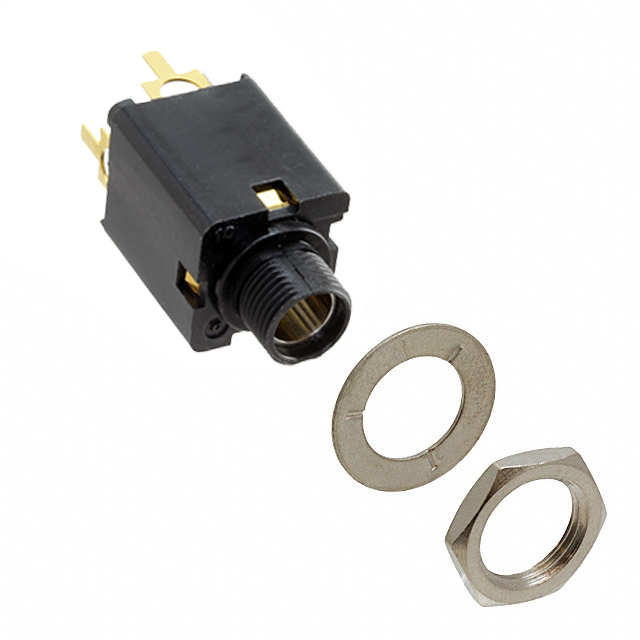

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MN112BX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MN112BX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MN112BX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 6.35MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.55 | $2.058 | $1.879 | $1.79 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.70 | $1.521 | $1.454 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MN112BX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK STEREO 6.35MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24501 pcs | Data sheet | Jack SchematicsN110X, MN110X Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | 3/8"-32 | Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | Hi-D JAX® MN-11* | Panel Hole Size | 0.375" (9.52mm) |
| Packaging | Bulk | Other Names | MN112BX-ND SC2521 |
| Operating Temperature | - | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Thermoplastic |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | - |
| Body Color | Black | Actual Diameter | 0.250" (6.35mm) |
