Home > Products > Discrete Semiconductor Products > Diodes - Zener - Single > MAZ43000MF

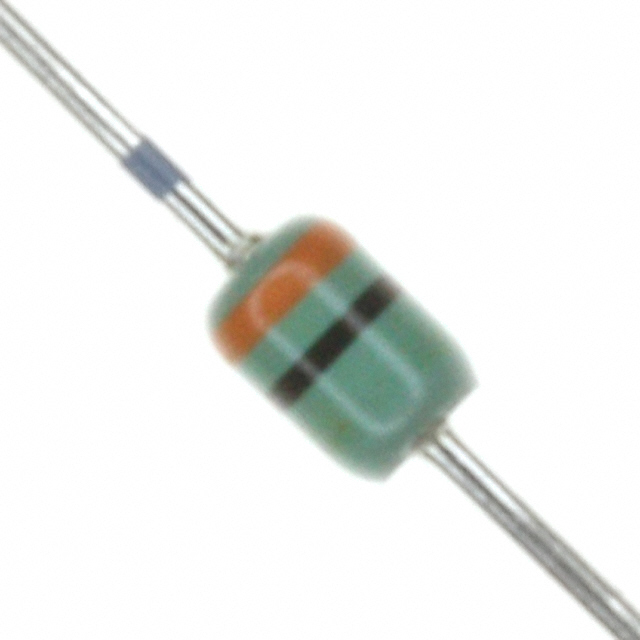

MAZ43000MF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAZ43000MF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAZ43000MF
Manufacturer	Panasonic
Description	DIODE ZENER 30V 370MW DO34
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 581043 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$0.165	$0.119	$0.092
	$0.07	$0.049	$0.04

Product parameter
Data sheet

Product parameter

Part Number	MAZ43000MF	Manufacturer	Panasonic
Description	DIODE ZENER 30V 370MW DO34	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	581043 pcs	Data sheet	MAZ4000 Series Datasheet
Category	Discrete Semiconductor Products	Voltage - Zener (Nom) (Vz)	30V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA	Tolerance	±7%
Supplier Device Package	DO34-A2	Series	-
Power - Max	370mW	Packaging	Cut Tape (CT)
Package / Case	DO-204AG, DO-34, Axial	Other Names	MAZ43000MFCT
Operating Temperature	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance (Max) (Zzt)	80 Ohms	Detailed Description	Zener Diode 30V 370mW ±7% Through Hole DO34-A2
Current - Reverse Leakage @ Vr	50nA @ 21V	Base Part Number	MAZ430
