Home > Products > Discrete Semiconductor Products > Diodes - Zener - Single > MAZ41600MF

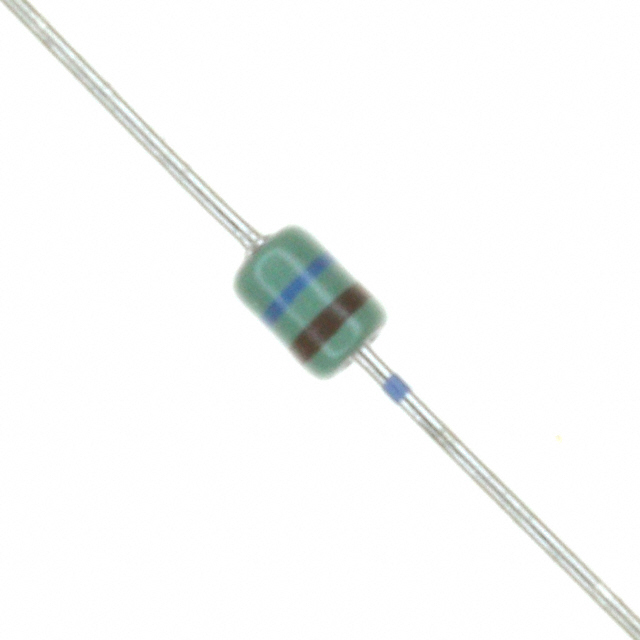

MAZ41600MF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAZ41600MF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MAZ41600MF
Manufacturer	Panasonic
Description	DIODE ZENER 16V 370MW DO34
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 527322 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$0.165	$0.118	$0.092
	$0.07	$0.049	$0.039

Product parameter
Data sheet

Product parameter

Part Number	MAZ41600MF	Manufacturer	Panasonic
Description	DIODE ZENER 16V 370MW DO34	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	527322 pcs	Data sheet	MAZ4000 Series Datasheet
Category	Discrete Semiconductor Products	Voltage - Zener (Nom) (Vz)	16V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA	Tolerance	±6%
Supplier Device Package	DO34-A2	Series	-
Power - Max	370mW	Packaging	Cut Tape (CT)
Package / Case	DO-204AG, DO-34, Axial	Other Names	MAZ41600MFCT
Operating Temperature	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Impedance (Max) (Zzt)	40 Ohms	Detailed Description	Zener Diode 16V 370mW ±6% Through Hole DO34-A2
Current - Reverse Leakage @ Vr	50nA @ 11V	Base Part Number	MAZ416
