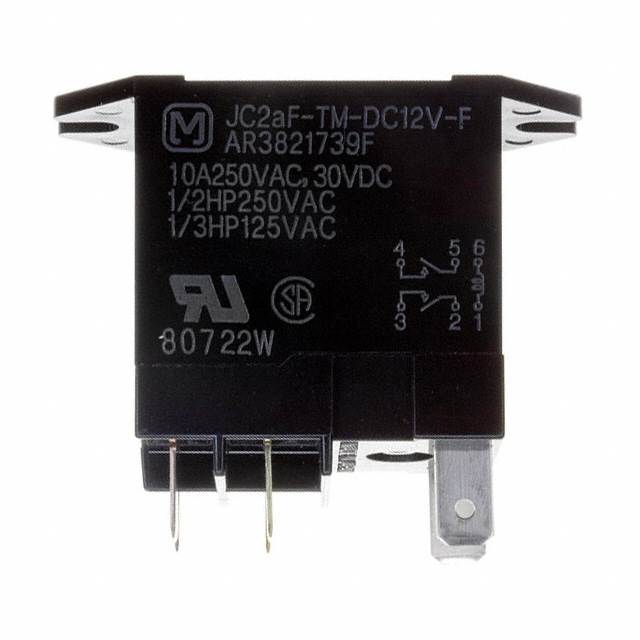

JC2AF-TM-DC12V-F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JC2AF-TM-DC12V-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JC2AF-TM-DC12V-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JC2AF-TM-DC12V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPST 10A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JC2AF-TM-DC12V-F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPST 10A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5130 pcs | Data sheet | JC Relays |
| Category | Relays | Turn On Voltage (Max) | 9.6 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Switching Voltage | 250VAC - Max | Series | JC |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-2387 |
| Operating Temperature | -50°C ~ 60°C | Operate Time | 30ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Chassis Mount | Contact Rating (Current) | 10A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | DPST-NO (2 Form A) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 144 Ohms | Coil Power | 1 W |
| Coil Current | 83.3mA |
