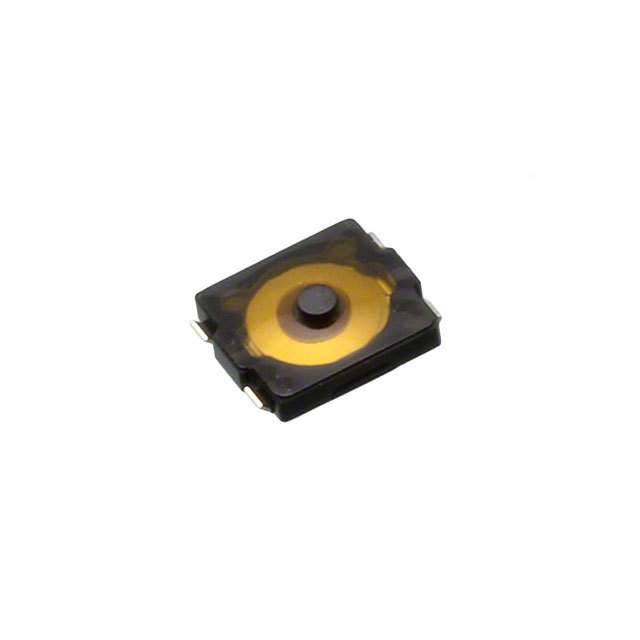

EVP-AYG0BA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVP-AYG0BA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVP-AYG0BA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVP-AYG0BA |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.189 | $0.18 | $0.177 | $0.17 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.147 | $0.134 | $0.127 | $0.10 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVP-AYG0BA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 231384 pcs | Data sheet | EVP-AY Series DatasheetEVP-AY Series Prod Intro |
| Category | Switches | Termination Style | J Lead |
| Switch Travel | 0.15mm | Switch Function | Off-Mom |
| Series | EVPAY | Packaging | Cut Tape (CT) |
| Outline | 3.40mm x 2.90mm | Other Names | P17698CT |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 240gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 0.70mm |
