EVP-AWCD2A

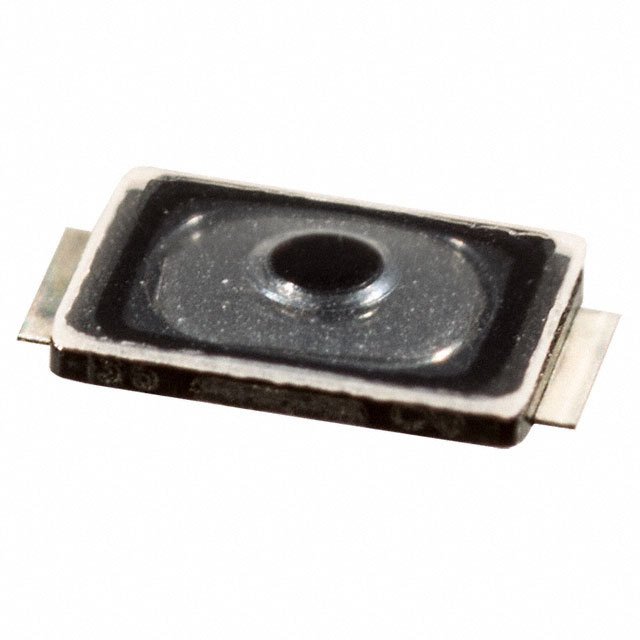

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVP-AWCD2A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVP-AWCD2A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVP-AWCD2A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.126 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVP-AWCD2A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 153828 pcs | Data sheet | EVP-AW SeriesEVP-AX,AW,AV,AS Series Prod Info |
| Category | Switches | Termination Style | SMD (SMT) Tab |
| Switch Travel | 0.13mm | Switch Function | Off-Mom |
| Series | EVPAW | Packaging | Tape & Reel (TR) |
| Outline | 3.00mm x 2.00mm | Other Names | EVPAWCD2A P19744TR |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 240gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.02A @ 15VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 0.60mm |
