ELL-VGG1R6N

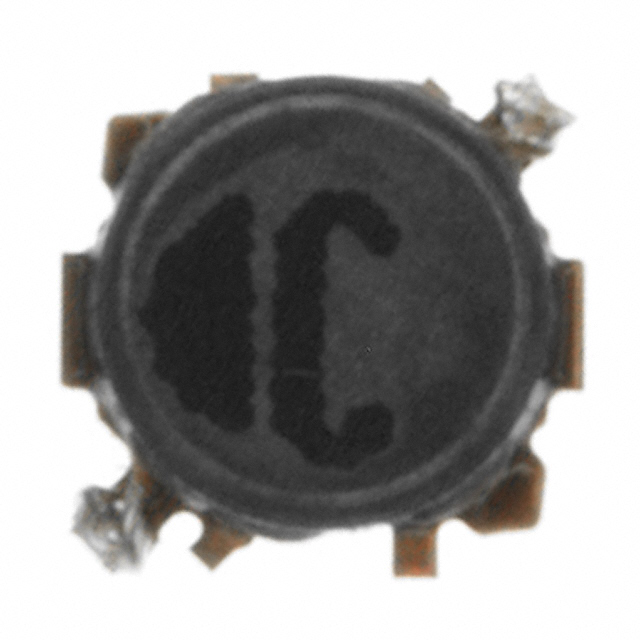

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-VGG1R6N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-VGG1R6N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-VGG1R6N |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 1.6UH 1.55A 73 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 50000 pcs |
|---|---|---|---|---|---|
| $0.065 | $0.061 | $0.059 | $0.057 | $0.053 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-VGG1R6N | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 1.6UH 1.55A 73 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 416437 pcs | Data sheet | ELL-VEG, VFG, VGG Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | ELLVGG1R6N PCD2298TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 1.6µH |
| Height - Seated (Max) | 0.059" (1.50mm) | Frequency - Self Resonant | - |
| Detailed Description | 1.6µH Shielded Wirewound Inductor 1.55A 73 mOhm Nonstandard | DC Resistance (DCR) | 73 mOhm |
| Current Rating | 1.55A | Current - Saturation | 1.8A |
