ELL-VFG4R7NC

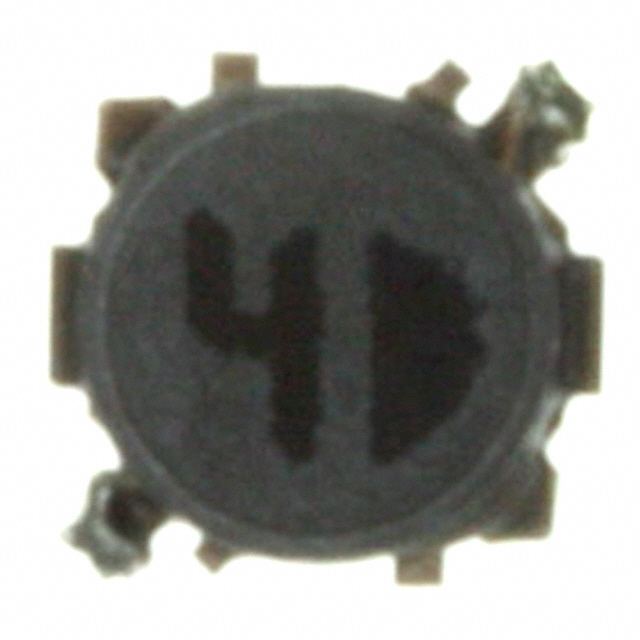

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELL-VFG4R7NC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-VFG4R7NC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELL-VFG4R7NC |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 4.7UH 1.05A 150 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 50000 pcs |
|---|---|---|---|---|---|
| $0.075 | $0.07 | $0.068 | $0.066 | $0.061 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ELL-VFG4R7NC | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 4.7UH 1.05A 150 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 383747 pcs | Data sheet | ELL-VEG, VFG, VGG Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Shielding | Shielded |
| Series | G | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | ELLVFG4R7NC PCD2291TR |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 4.7µH |
| Height - Seated (Max) | 0.047" (1.20mm) | Frequency - Self Resonant | - |
| Detailed Description | 4.7µH Shielded Wirewound Inductor 1.05A 150 mOhm Nonstandard | DC Resistance (DCR) | 150 mOhm |
| Current Rating | 1.05A | Current - Saturation | 740mA |
