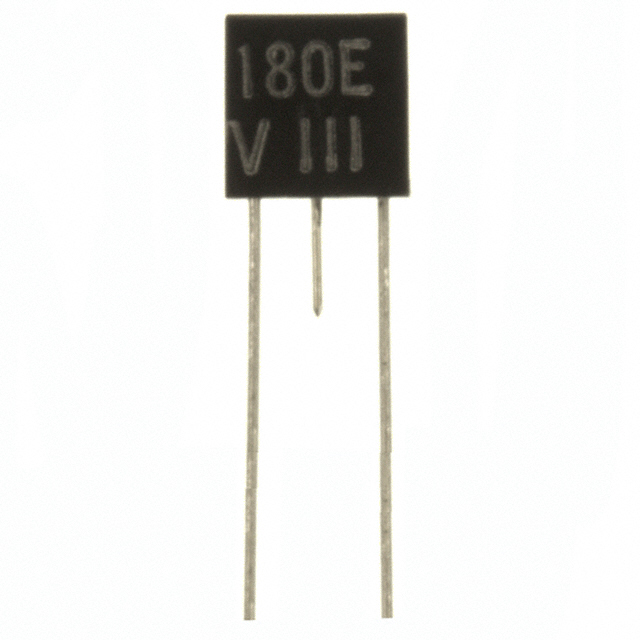

ELK-TT180EA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELK-TT180EA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELK-TT180EA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELK-TT180EA |
|---|---|
| Manufacturer | Panasonic |
| Description | FILTER LC(T) 18PF 55MHZ TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELK-TT180EA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FILTER LC(T) 18PF 55MHZ TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4247 pcs | Data sheet | ELK-T Series Datasheet |
| Category | Filters | Voltage - Rated | - |
| Values | C = 18pF | Type | Low Pass |
| Technology | LC (T-Type) | Size / Dimension | 0.276" L x 0.102" W (7.00mm x 2.60mm) |
| Series | ELKT | Resistance - Channel (Ohms) | - |
| Packaging | Cut Tape (CT) | Package / Case | Radial - 3 Leads |
| Other Names | ELK-TH180EA P11101CT |
Operating Temperature | - |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height | 0.295" (7.50mm) | Filter Order | 3rd |
| ESD Protection | No | Detailed Description | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 18pF Radial - 3 Leads |
| Center / Cutoff Frequency | 55MHz (Cutoff) | Attenuation Value | - |
| Applications | Data Lines for Mobile Devices |
