ELK-EV300FF

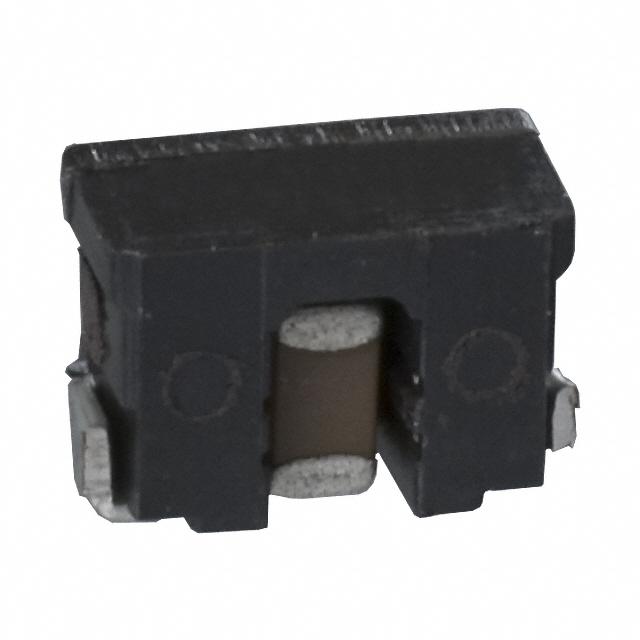

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELK-EV300FF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELK-EV300FF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELK-EV300FF |
|---|---|
| Manufacturer | Panasonic |
| Description | FILTER LC(T) 30PF ESD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.168 | $0.158 | $0.148 | $0.138 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELK-EV300FF | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FILTER LC(T) 30PF ESD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 145454 pcs | Data sheet | ELKE(V) Series Datasheet |
| Category | Filters | Voltage - Rated | 27V |
| Values | C = 30pF | Type | Low Pass |
| Technology | LC (T-Type) | Size / Dimension | 0.126" L x 0.071" W (3.20mm x 1.80mm) |
| Series | ELKEV | Resistance - Channel (Ohms) | - |
| Packaging | Tape & Reel (TR) | Package / Case | 1207 (3218 Metric), 3 PC Pad |
| Other Names | ELKEV300FF P13171TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.087" (2.20mm) |
| Filter Order | 3rd | ESD Protection | Yes |
| Detailed Description | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 30pF 2A 1207 (3218 Metric), 3 PC Pad | Current | 2A |
| Center / Cutoff Frequency | 200MHz (Cutoff) | Attenuation Value | 15dB @ 450MHz ~ 1GHz |
| Applications | Data Lines for Mobile Devices |
