ELJ-NA2R2JF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELJ-NA2R2JF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELJ-NA2R2JF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELJ-NA2R2JF |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 2.2UH 110MA 3.2 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELJ-NA2R2JF | Manufacturer | Panasonic |
|---|---|---|---|
| Description | FIXED IND 2.2UH 110MA 3.2 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5656 pcs | Data sheet | ELJ-RF, RE, ND, NC, NA Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±5% | Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Shielding | Unshielded |
| Series | NA | Ratings | - |
| Q @ Freq | 13 @ 7.96MHz | Packaging | Cut Tape (CT) |
| Package / Case | 1210 (3225 Metric) | Other Names | ELJ-NA2R2JB ELJNA2R2JB PCD1135CT |
| Operating Temperature | - | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Non-Magnetic |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 1MHz |
| Inductance | 2.2µH | Height - Seated (Max) | 0.094" (2.40mm) |
| Frequency - Self Resonant | 80MHz | Detailed Description | 2.2µH Unshielded Wirewound Inductor 110mA 3.2 Ohm Max 1210 (3225 Metric) |
| DC Resistance (DCR) | 3.2 Ohm Max | Current Rating | 110mA |
| Current - Saturation | - |
- Related products
- Related news
Related products
- Part#:

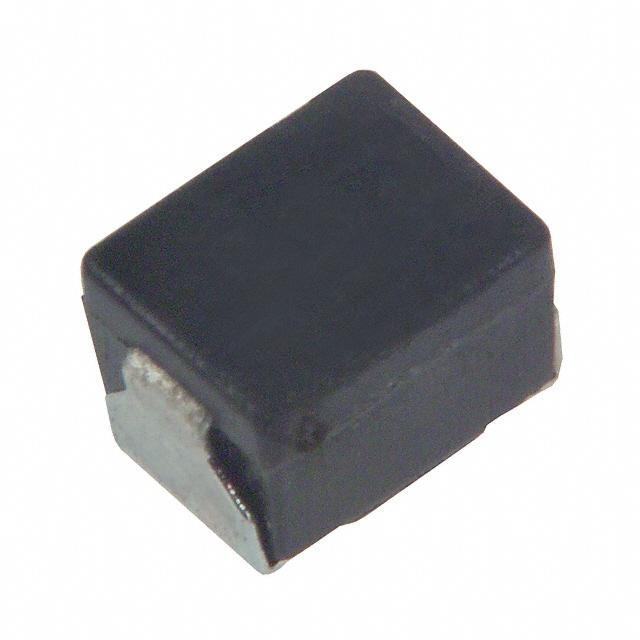

ELJ-NA68NMF - Manufacturers:
