ELF-16M050A

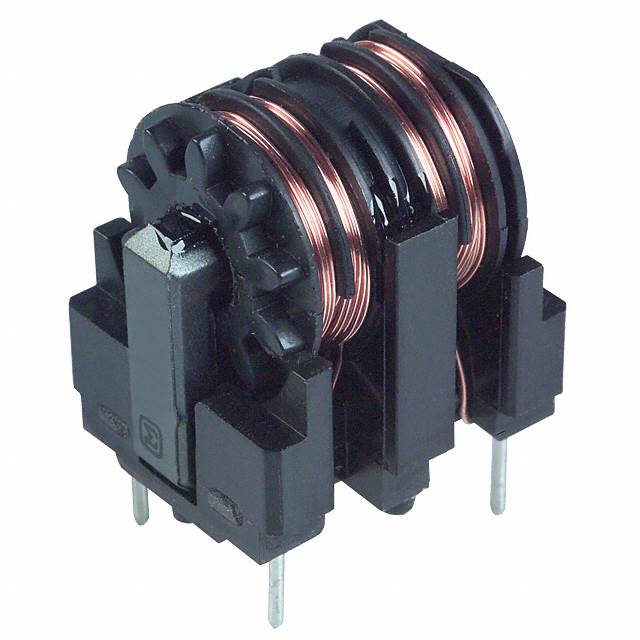

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-16M050A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-16M050A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-16M050A |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 500MA 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-16M050A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 500MA 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5739 pcs | Data sheet | M Sieres, Type11/14/16M |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.591" L x 0.709" W (15.00mm x 18.00mm) |
| Series | M | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF16M050A PLK1159 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height (Max) | 0.807" (20.50mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 500mA DCR 980 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 980 mOhm (Typ) | Current Rating (Max) | 500mA |
| Approvals | - |
