ELF-15N030A

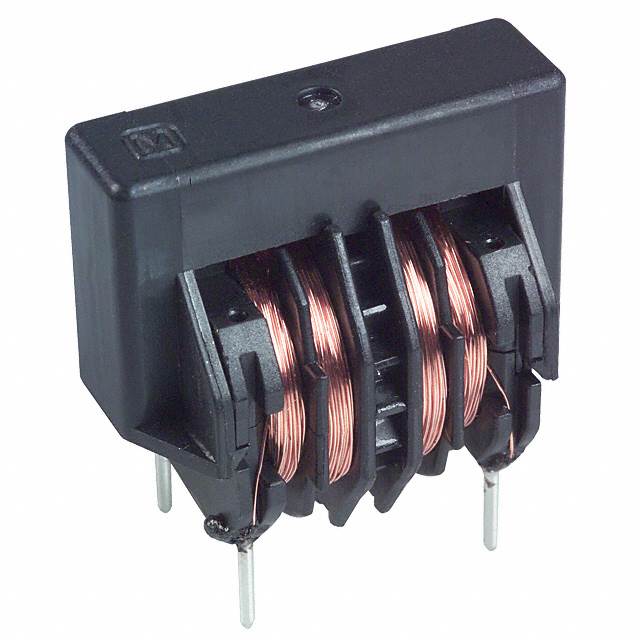

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ELF-15N030A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ELF-15N030A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ELF-15N030A |
|---|---|
| Manufacturer | Panasonic |
| Description | COMMON MODE CHOKE 3A 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ELF-15N030A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | COMMON MODE CHOKE 3A 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4957 pcs | Data sheet | N Series, Type 15-21N |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.591" L x 0.894" W (15.00mm x 22.70mm) |
| Series | N | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | ELF15N030A PLK1077 |
Operating Temperature | - |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height (Max) | 0.886" (22.50mm) | Filter Type | - |
| Features | - | Detailed Description | 2 Line Common Mode Choke Through Hole 3A DCR 52 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 52 mOhm (Typ) | Current Rating (Max) | 3A |
| Approvals | - |
