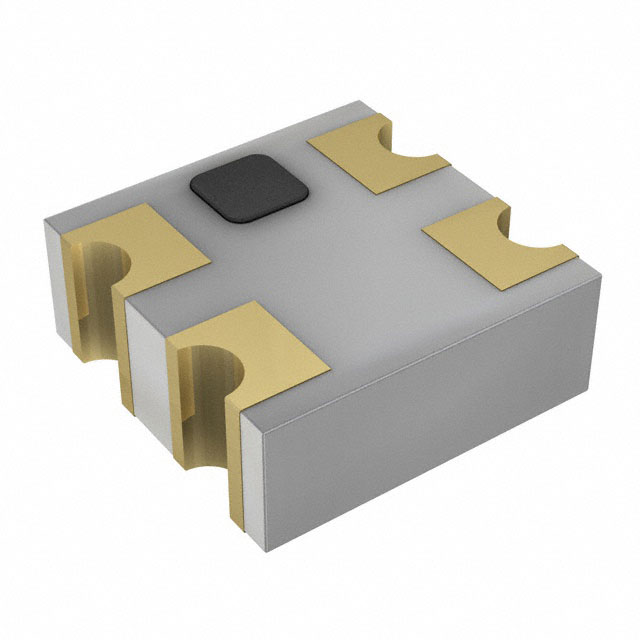

EHF-FD1540
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-FD1540 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EHF-FD1540 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EHF-FD1540 |
|---|---|
| Manufacturer | Panasonic |
| Description | RF DIR COUPLER 800MHZ-1GHZ 0603 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.602 | $0.546 | $0.487 | $0.438 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.39 | $0.341 | $0.282 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EHF-FD1540 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RF DIR COUPLER 800MHZ-1GHZ 0603 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 69583 pcs | Data sheet | EHF-FD Directional Coupler |
| Category | RF/IF and RFID | Supplier Device Package | 0603 (1608 Metric) |
| Series | - | Return Loss | - |
| Power - Max | - | Packaging | Cut Tape (CT) |
| Package / Case | 0603 (1608 Metric) | Other Names | P10684 P10684-ND P10684BK P10684CT |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Isolation | 25dB | Insertion Loss | 0.25dB |
| Frequency | 800MHz ~ 1GHz | Detailed Description | RF Directional Coupler Telecom/Datacom Systems 800MHz ~ 1GHz 17 ± 2dB 0603 (1608 Metric) |
| Coupling Factor | 17 ± 2dB | Coupler Type | Standard |
| Applications | Telecom/Datacom Systems |
