Home > Products > RF/IF and RFID > RF Power Dividers/Splitters > EHF-FD1509

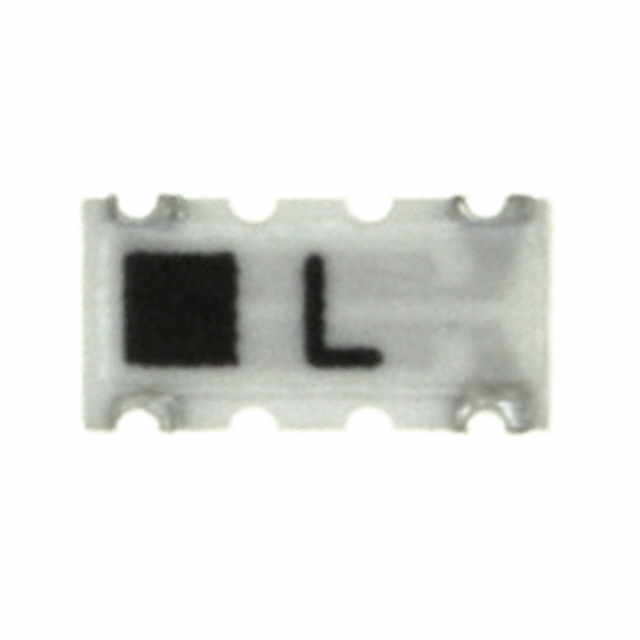

EHF-FD1509

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-FD1509 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EHF-FD1509
Manufacturer	Panasonic
Description	POWER DIVIDER 2100-2200MHZ
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4144 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	EHF-FD1509	Manufacturer	Panasonic
Description	POWER DIVIDER 2100-2200MHZ	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4144 pcs	Data sheet	EHFFD Power-Divider
Category	RF/IF and RFID	Specifications	Isolation (Min) 18dB, 1.6 VSWR (Max)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)	Series	-
Packaging	Bulk	Package / Case	-
Other Names	EHFFD1509 P10721 P10721BK	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	4dB
Frequency	2043Hz ~ 2104MHz	Detailed Description	RF Power Divider 2043Hz ~ 2104MHz Isolation (Min) 18dB, 1.6 VSWR (Max)
