Home > Products > RF/IF and RFID > Balun > EHF-2BG2450

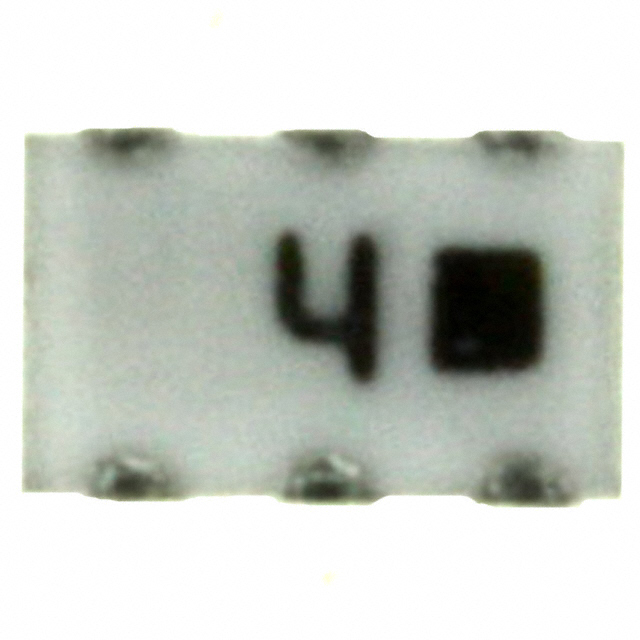

EHF-2BG2450

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-2BG2450 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EHF-2BG2450
Manufacturer	Panasonic
Description	BALUN 2.4GHZ-2.5GHZ 50/200 0805
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 79664 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$0.637	$0.509	$0.414	$0.403	$0.392

Product parameter
Data sheet

Product parameter

Part Number	EHF-2BG2450	Manufacturer	Panasonic
Description	BALUN 2.4GHZ-2.5GHZ 50/200 0805	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	79664 pcs	Data sheet	EHF-2BG2450
Category	RF/IF and RFID	Series	EHF
Return Loss (Min)	-	Phase Difference	180° ±15°
Packaging	Cut Tape (CT)	Package / Case	0805 (2012 Metric)
Other Names	P12039CT	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss (Max)	1.0dB	Impedance - Unbalanced/Balanced	50 / 200 Ohm
Frequency Range	2.4GHz ~ 2.5GHz	Detailed Description	RF Balun 2.4GHz ~ 2.5GHz 50 / 200 Ohm 0805 (2012 Metric)
