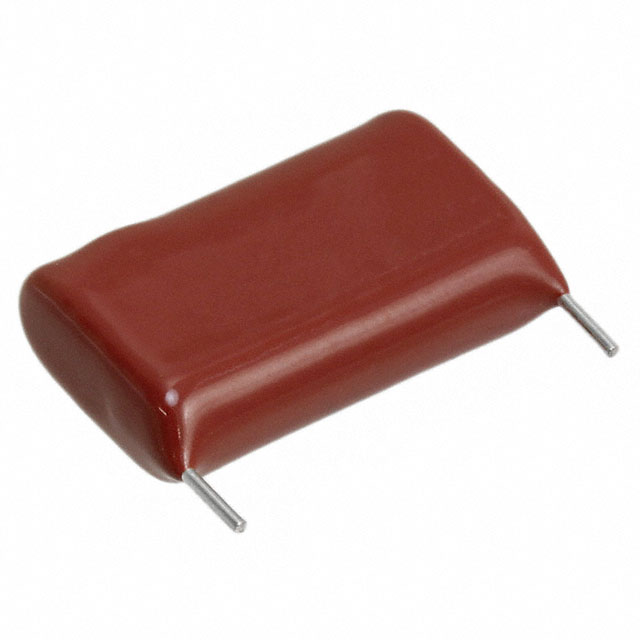

ECW-HC3F103JD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECW-HC3F103JD with confidence from Components-World.HK, 1 Year Warranty
Dowload ECW-HC3F103JD Details in PDFSee Product Specifications for product details.
Buy ECW-HC3F103JD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECW-HC3F103JD |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP FILM 10000PF 5% 3KVDC RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.473 | $0.375 | $0.281 | $0.212 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.187 | $0.175 | $0.168 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECW-HC3F103JD | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP FILM 10000PF 5% 3KVDC RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118516 pcs | Data sheet | ECW-HC3F103JD View All SpecificationsECWH(C) Series Datasheet |
| Category | Capacitors | Voltage Rating - DC | 3000V (3kV) |
| Voltage Rating - AC | - | Tolerance | ±5% |
| Termination | PC Pins | Size / Dimension | 1.016" L x 0.323" W (25.80mm x 8.20mm) |
| Series | ECW-H(C) | Ratings | - |
| Packaging | Bulk | Package / Case | Radial |
| Other Names | ECWHC3F103JD P16759 |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Spacing | 0.886" (22.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.634" (16.10mm) |
| Features | - | Dielectric Material | Polypropylene (PP), Metallized |
| Detailed Description | 10000pF Film Capacitor 3000V (3kV) Polypropylene (PP), Metallized Radial | Capacitance | 10000pF |
| Applications | General Purpose |
