ECW-HC3B803JA

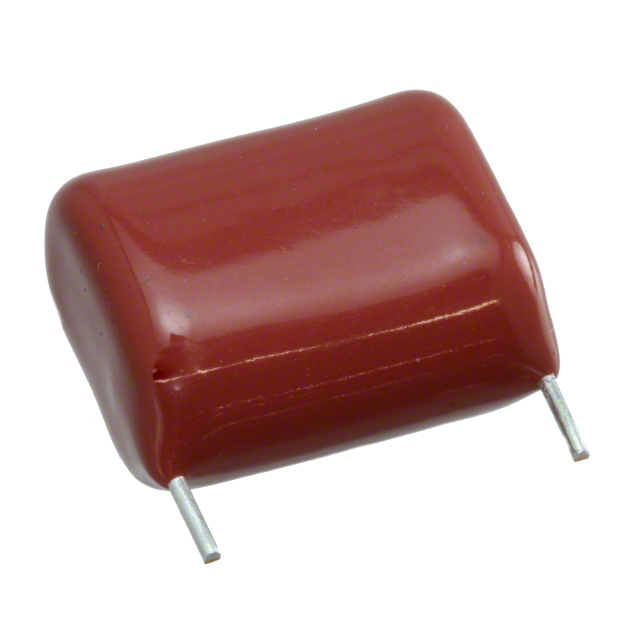

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECW-HC3B803JA with confidence from Components-World.HK, 1 Year Warranty
Dowload ECW-HC3B803JA Details in PDFSee Product Specifications for product details.
Buy ECW-HC3B803JA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECW-HC3B803JA |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP FILM 0.08UF 5% 1.25KVDC RAD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.684 | $0.54 | $0.405 | $0.306 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.27 | $0.252 | $0.243 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECW-HC3B803JA | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP FILM 0.08UF 5% 1.25KVDC RAD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84778 pcs | Data sheet | AC/DC Voltage Alternating Current ChartCapacitors Product SummaryECWH(C) Series DatasheetCapacitor Safety Precaution GuidePlastic Film Capacitor Catalog |
| Category | Capacitors | Voltage Rating - DC | 1250V (1.25kV) |
| Voltage Rating - AC | - | Tolerance | ±5% |
| Termination | PC Pins | Size / Dimension | 0.815" L x 0.472" W (20.70mm x 12.00mm) |
| Series | ECW-H(C) | Ratings | - |
| Packaging | Bulk | Package / Case | Radial |
| Other Names | ECWHC3B803JA P122477 |
Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Spacing | 0.689" (17.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.807" (20.50mm) |
| Features | - | Dielectric Material | Polypropylene (PP), Metallized |
| Detailed Description | 0.08µF Film Capacitor 1250V (1.25kV) Polypropylene (PP), Metallized Radial | Capacitance | 0.08µF |
| Applications | General Purpose |
