ECA-1JM220I

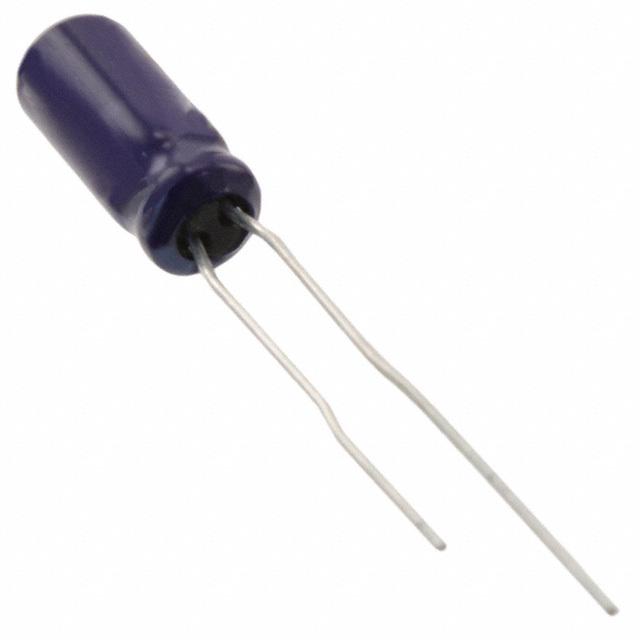

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECA-1JM220I with confidence from Components-World.HK, 1 Year Warranty
Dowload ECA-1JM220I Details in PDFSee Product Specifications for product details.
Buy ECA-1JM220I with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECA-1JM220I |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 22UF 20% 63V RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 10000 pcs | ||
|---|---|---|---|---|---|
| $0.016 | $0.015 | $0.014 | |||
| 14000 pcs | 50000 pcs | 100000 pcs | |||
| $0.013 | $0.012 | $0.01 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECA-1JM220I | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 22UF 20% 63V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2306225 pcs | Data sheet | ECA-xxM Series, Type AECA-xxM Spec Sheet |
| Category | Capacitors | Voltage - Rated | 63V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.197" Dia (5.00mm) | Series | M |
| Ripple Current @ Low Frequency | 105mA @ 120Hz | Ripple Current @ High Frequency | 178.5mA @ 10kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Tape & Box (TB) | Package / Case | Radial, Can |
| Other Names | ECA-1JM220I-ND ECA1JM220I P19538TB |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Lead Spacing | 0.098" (2.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.472" (12.00mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 22µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C | Capacitance | 22µF |
| Applications | General Purpose |
