ECA-1JM102

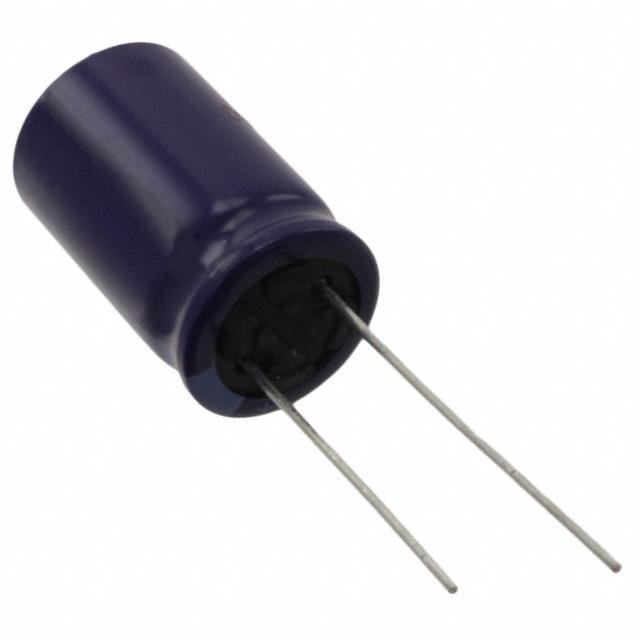

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECA-1JM102 with confidence from Components-World.HK, 1 Year Warranty
Dowload ECA-1JM102 Details in PDFSee Product Specifications for product details.
Buy ECA-1JM102 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECA-1JM102 |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM 1000UF 20% 63V RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.399 | $0.316 | $0.237 | $0.179 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.158 | $0.147 | $0.142 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECA-1JM102 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM 1000UF 20% 63V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 152991 pcs | Data sheet | ECA-xxM Series, Type AECA-xxM Spec Sheet |
| Category | Capacitors | Voltage - Rated | 63V |
| Tolerance | ±20% | Surface Mount Land Size | - |
| Size / Dimension | 0.630" Dia (16.00mm) | Series | M |
| Ripple Current @ Low Frequency | 1.1A @ 120Hz | Ripple Current @ High Frequency | 1.87A @ 10kHz |
| Ratings | - | Polarization | Polar |
| Packaging | Bulk | Package / Case | Radial, Can |
| Other Names | ECA1JM102 P5197 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Lead Spacing | 0.295" (7.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 1.063" (27.00mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C | Capacitance | 1000µF |
| Applications | General Purpose |
