DMC564040R

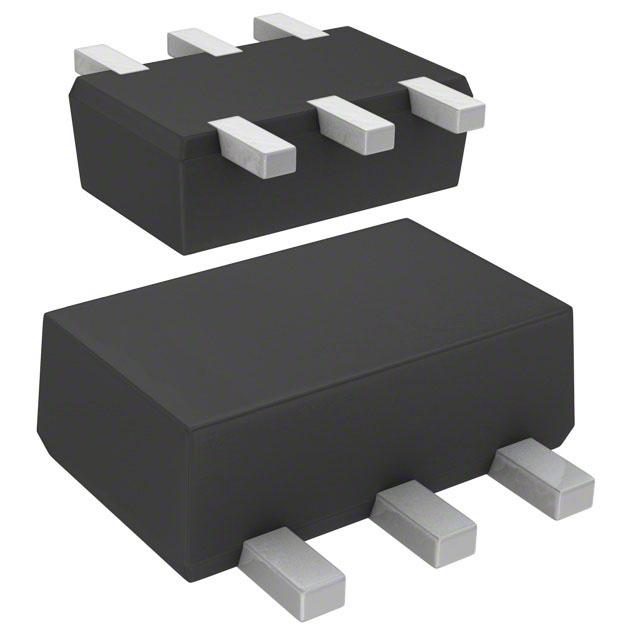

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMC564040R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMC564040R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMC564040R |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS PREBIAS DUAL NPN SMINI6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.193 | $0.153 | $0.129 | $0.105 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.087 | $0.072 | $0.054 | |||
- Product parameter
Product parameter
| Part Number | DMC564040R | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS PREBIAS DUAL NPN SMINI6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 386882 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA | Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Supplier Device Package | SMini6-F3-B | Series | - |
| Resistor - Emitter Base (R2) | 47 kOhms | Resistor - Base (R1) | 10 kOhms |
| Power - Max | 150mW | Packaging | Original-Reel® |
| Package / Case | 6-SMD, Flat Leads | Other Names | DMC564040RDKR |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | - | Detailed Description | Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 150mW Surface Mount SMini6-F3-B |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V | Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100mA | Base Part Number | DMC56404 |
