DMC562000R

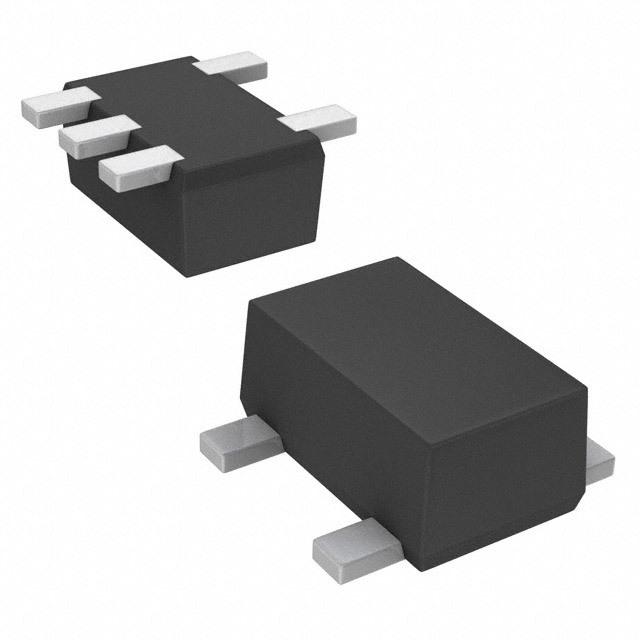

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DMC562000R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DMC562000R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DMC562000R |
|---|---|
| Manufacturer | Panasonic |
| Description | TRANS 2NPN PREBIAS 0.15W SMINI5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.035 | $0.033 | $0.03 | $0.028 | ||
- Product parameter
Product parameter
| Part Number | DMC562000R | Manufacturer | Panasonic |
|---|---|---|---|
| Description | TRANS 2NPN PREBIAS 0.15W SMINI5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 793303 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA | Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Supplier Device Package | SMini5-F3-B | Series | - |
| Resistor - Emitter Base (R2) | - | Resistor - Base (R1) | 47 kOhms |
| Power - Max | 150mW | Packaging | Tape & Reel (TR) |
| Package / Case | 5-SMD, Flat Leads | Other Names | DMC562000R-ND DMC562000RTR |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | - | Detailed Description | Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 150mW Surface Mount SMini5-F3-B |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 5mA, 10V | Current - Collector Cutoff (Max) | 500nA |
| Current - Collector (Ic) (Max) | 100mA | Base Part Number | DMC56200 |
