DB3J314J0L

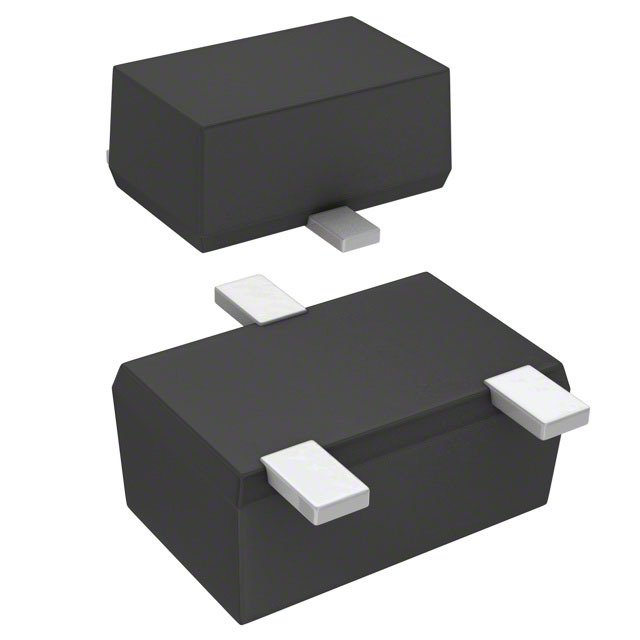

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DB3J314J0L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DB3J314J0L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DB3J314J0L |
|---|---|
| Manufacturer | Panasonic |
| Description | DIODE ARRAY SCHOTTKY 30V SMINI3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.026 | $0.023 | $0.021 | $0.019 | $0.017 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DB3J314J0L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DIODE ARRAY SCHOTTKY 30V SMINI3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1300199 pcs | Data sheet | DB3J314J0L |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1V @ 30mA |
| Voltage - DC Reverse (Vr) (Max) | 30V | Supplier Device Package | SMini3-F2-B |
| Speed | Small Signal =< 200mA (Io), Any Speed | Series | - |
| Reverse Recovery Time (trr) | 1ns | Packaging | Tape & Reel (TR) |
| Package / Case | SC-85 | Other Names | DB3J314J0L-ND DB3J314J0LTR |
| Operating Temperature - Junction | 125°C (Max) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Anode | Detailed Description | Diode Array 1 Pair Common Anode Schottky 30V 30mA (DC) Surface Mount SC-85 |
| Current - Reverse Leakage @ Vr | 300nA @ 30V | Current - Average Rectified (Io) (per Diode) | 30mA (DC) |
| Base Part Number | DB3J314 |
