Home > Products > Switches > Snap Action, Limit Switches > DB3CB1LB

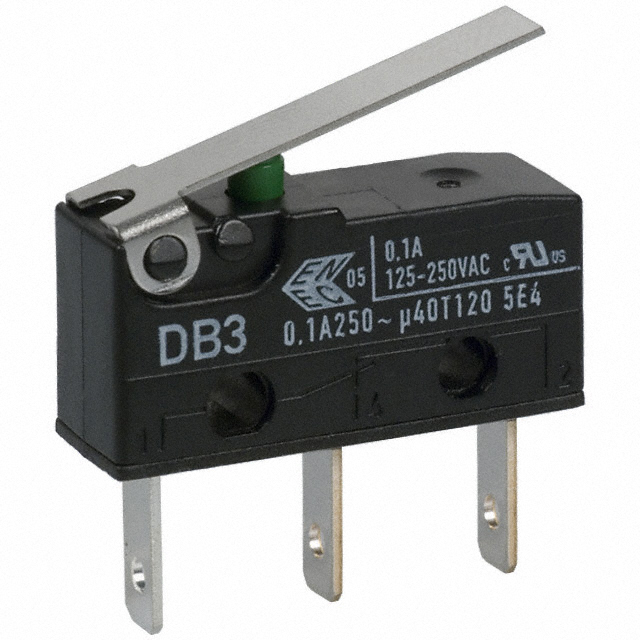

DB3CB1LB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DB3CB1LB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DB3CB1LB
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACT SPDT 100MA 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 61272 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.992	$0.917	$0.859	$0.84	$0.668
	$0.63	$0.592	$0.554	$0.516

Product parameter
Data sheet

Product parameter

Part Number	DB3CB1LB	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61272 pcs	Data sheet	DB Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.110" (2.8mm)	Switch Function	On-Mom
Series	DB	Release Force	-
Pretravel	0.157" (4.0mm)	Packaging	Bulk
Overtravel	0.079" (2.0mm)	Other Names	CH880 DB3C-B1LB
Operating Temperature	-40°C ~ 120°C	Operating Position	0.420" (10.7mm)
Operating Force	60gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	15,000,000 Cycles
Manufacturer Standard Lead Time	29 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP50 - Dust Protected	Features	-
Electrical Life	100,000 Cycles	Differential Travel	0.020" (0.5mm)
Current Rating	100mA (AC)	Circuit	SPDT
Actuator Type	Lever, Straight
