DB2G40800L1

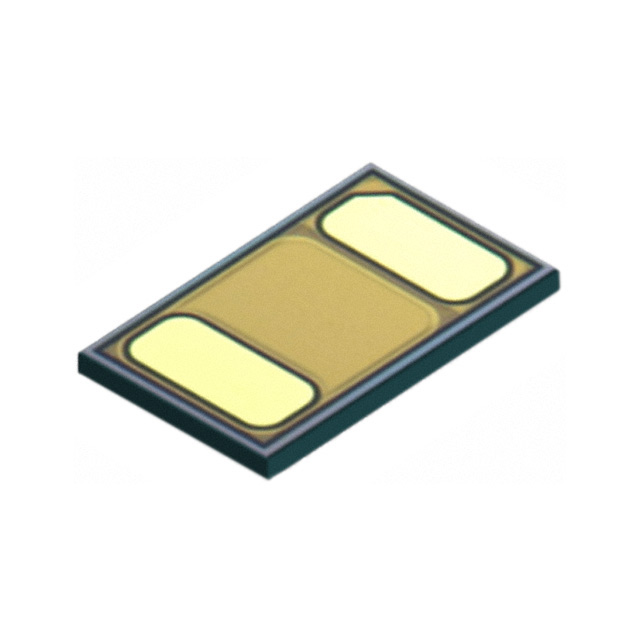

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DB2G40800L1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DB2G40800L1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DB2G40800L1 |
|---|---|
| Manufacturer | Panasonic |
| Description | DIODE SCHOTTKY 40V 1A 0402 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.207 | $0.146 | $0.096 | $0.057 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DB2G40800L1 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DIODE SCHOTTKY 40V 1A 0402 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 352538 pcs | Data sheet | DB2G40800L1 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 460mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 40V | Supplier Device Package | 0402 (1005 Metric) |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 8.8ns | Packaging | Original-Reel® |
| Package / Case | 0402 (1006 Metric) | Other Names | P18983DKR |
| Operating Temperature - Junction | 150°C (Max) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Schottky |
| Detailed Description | Diode Schottky 40V 1A Surface Mount 0402 (1005 Metric) | Current - Reverse Leakage @ Vr | 1200µA @ 40V |
| Current - Average Rectified (Io) | 1A | Capacitance @ Vr, F | 28pF @ 10V, 1MHz |
