Home > Products > Switches > Snap Action, Limit Switches > DB2CA1AA

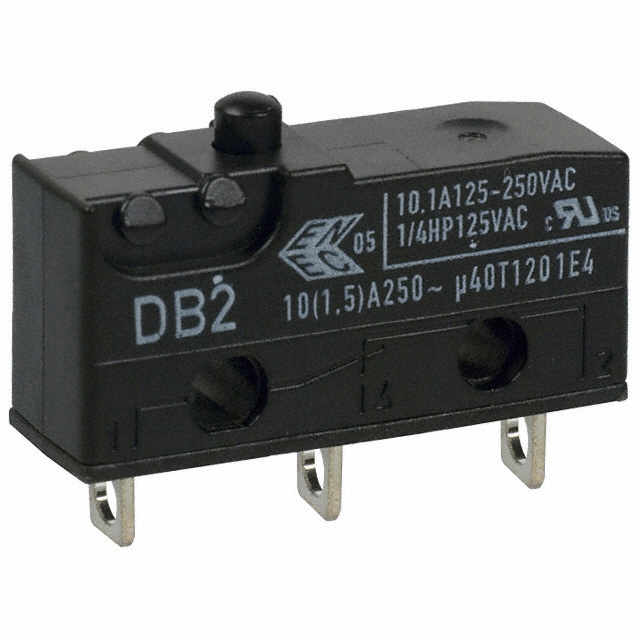

DB2CA1AA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DB2CA1AA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DB2CA1AA
Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 10A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 87068 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.843	$0.779	$0.73	$0.714	$0.568
	$0.536	$0.503	$0.471	$0.438

Product parameter
Data sheet

Product parameter

Part Number	DB2CA1AA	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	87068 pcs	Data sheet	DB Series Datasheet DB2C-A1AA Drawing
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	DB	Release Force	-
Pretravel	0.040" (1.0mm)	Packaging	Bulk
Overtravel	0.025" (0.6mm)	Other Names	CH886 DB2C-A1AA DB2CA1AA-ND
Operating Temperature	-40°C ~ 120°C	Operating Position	0.330" (8.4mm)
Operating Force	250gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	29 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP50 - Dust Protected	Features	-
Electrical Life	6,000 Cycles	Differential Travel	0.004" (0.1mm)
Current Rating	10A (AC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
