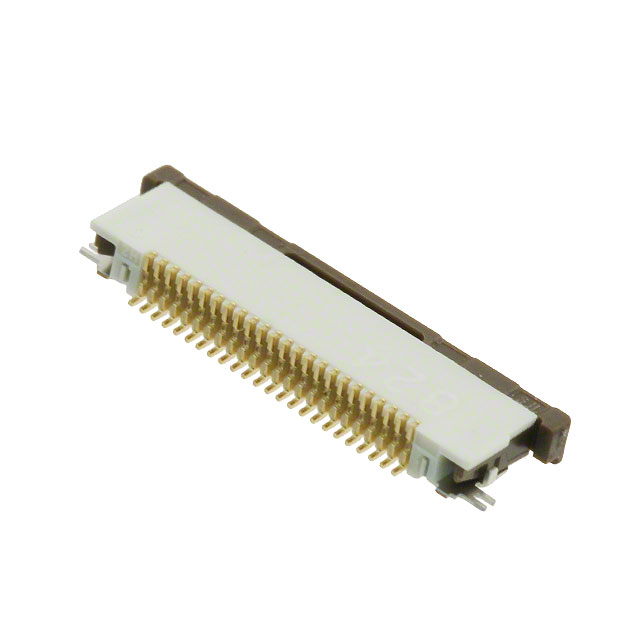

AYF512415
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AYF512415 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AYF512415 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AYF512415 |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN FPC BOTTOM 24POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AYF512415 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN FPC BOTTOM 24POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4602 pcs | Data sheet | Y5S FPC Conn |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Y5S |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | 255-3063-6 | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 24 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | - | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Housing Color | - | Height Above Board | 0.075" (1.90mm) |
| Flat Flex Type | FPC | Features | Solder Retention |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 24 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | - |
