AYF424035A

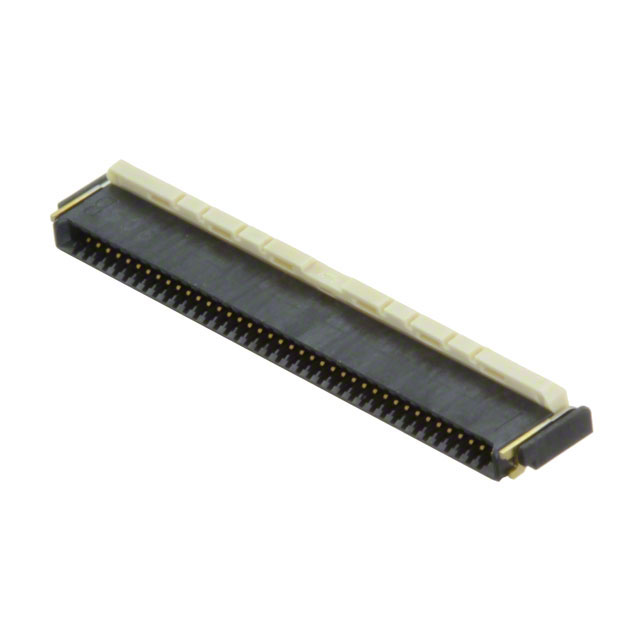

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AYF424035A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AYF424035A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AYF424035A |
|---|---|
| Manufacturer | Panasonic |
| Description | Y4BH FPC .4MM 40 PIN CONN 85/90 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.498 | $1.438 | $1.318 | $1.258 | $1.199 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.049 | $1.019 | $0.869 | $0.809 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AYF424035A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | Y4BH FPC .4MM 40 PIN CONN 85/90 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42442 pcs | Data sheet | Y4BH Series Intro~Y4BH Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Y4BH |
| Pitch | 0.016" (0.40mm) | Packaging | Strip |
| Other Names | 255-5192 | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 40 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | - |
| Height Above Board | 0.039" (1.00mm) | Flat Flex Type | FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 40 Position FPC Connector Contacts, Top and Bottom 0.016" (0.40mm) Surface Mount, Right Angle | Current Rating | 0.3A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | - |
