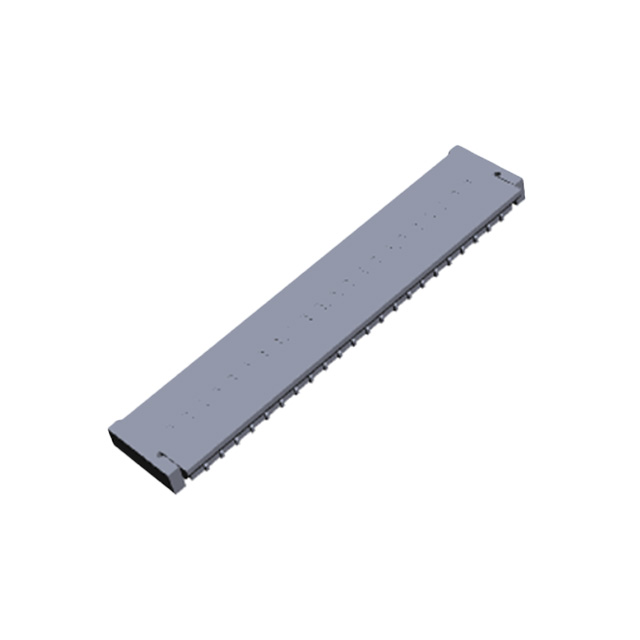

AYF336135
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AYF336135 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AYF336135 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AYF336135 |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN FPC 61POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.465 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AYF336135 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN FPC 61POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67648 pcs | Data sheet | AYF33 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Y3B |
| Pitch | 0.012" (0.30mm) | Packaging | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 85°C | Number of Positions | 61 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Locking Feature | Flip Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | - | Height Above Board | 0.035" (0.88mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 61 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A per Contact | Contact Material | Copper Alloy |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP) | Actuator Color | - |
