AYF333735A

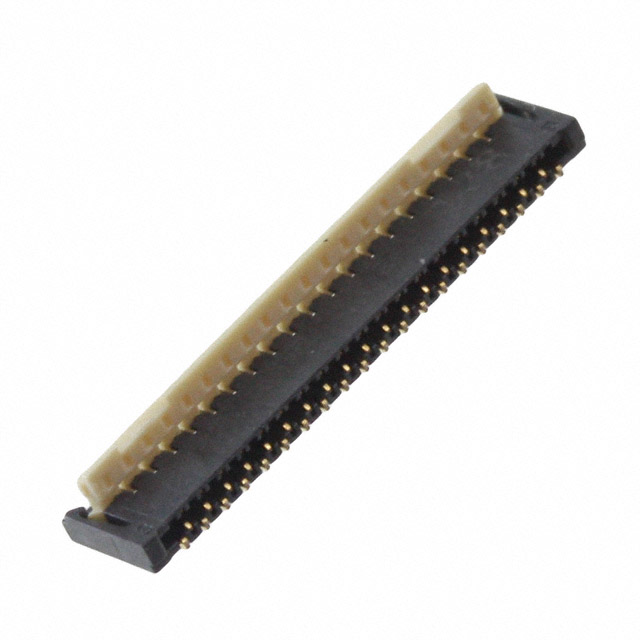

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AYF333735A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AYF333735A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AYF333735A |
|---|---|
| Manufacturer | Panasonic |
| Description | CONN FPC 37POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.076 | $1.033 | $0.947 | $0.904 | $0.861 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.753 | $0.732 | $0.624 | $0.581 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AYF333735A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CONN FPC 37POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68079 pcs | Data sheet | AYF33 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Y3B |
| Pitch | 0.012" (0.30mm) | Packaging | Strip |
| Other Names | 255-5652 AYF333735A-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 37 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | - |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 37 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A per Contact |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | - |
