AVL32453

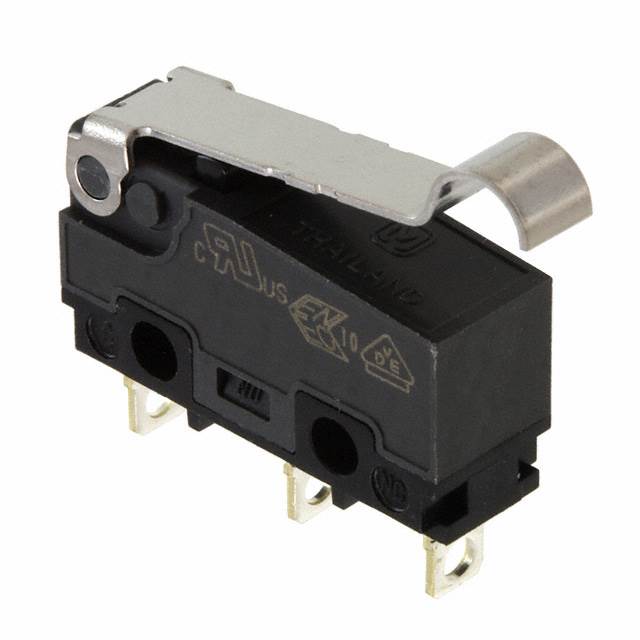

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AVL32453 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AVL32453 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AVL32453 |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.819 | $0.755 | $0.708 | $0.692 | $0.55 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.519 | $0.487 | $0.456 | $0.425 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AVL32453 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75478 pcs | Data sheet | AV(M,T,L)3 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | AVL3 |
| Release Force | 3.500gf | Pretravel | 0.110" (2.8mm) |
| Packaging | Bulk | Overtravel | 0.047" (1.2mm) |
| Other Names | 255-3740 AVL32453-ND |
Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.460" (11.7mm) | Operating Force | 55gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 10,000,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Electrical Life | 50,000 Cycles |
| Differential Travel | 0.032" (0.81mm) | Current Rating | 5A (AC/DC) |
| Circuit | SPDT | Actuator Type | Lever, Simulated Roller |
