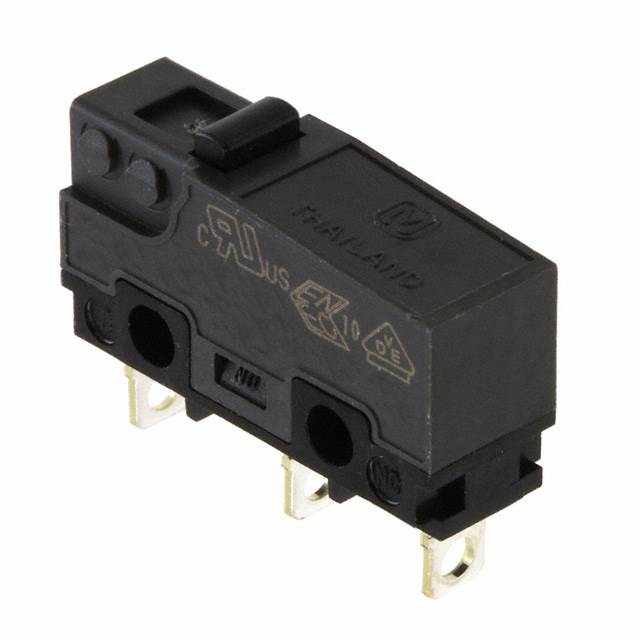

AVL32053-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AVL32053-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AVL32053-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AVL32053-A |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 5A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.718 | $0.678 | $0.651 | $0.624 | $0.596 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.474 | $0.434 | $0.42 | $0.38 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AVL32053-A | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101441 pcs | Data sheet | AV(M,T,L)3 Series Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | Solder Lug |
| Switch Function | On-Mom | Series | AVL3 |
| Release Force | 20gf | Pretravel | 0.024" (0.6mm) |
| Packaging | Bulk | Overtravel | 0.015" (0.4mm) |
| Other Names | 255-4189 | Operating Temperature | -25°C ~ 85°C |
| Operating Position | 0.330" (8.4mm) | Operating Force | 150gf |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 10,000,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Electrical Life | 50,000 Cycles |
| Differential Travel | 0.004" (0.1mm) | Current Rating | 5A (AC/DC) |
| Circuit | SPDT | Actuator Type | Round (Pin Plunger) |
