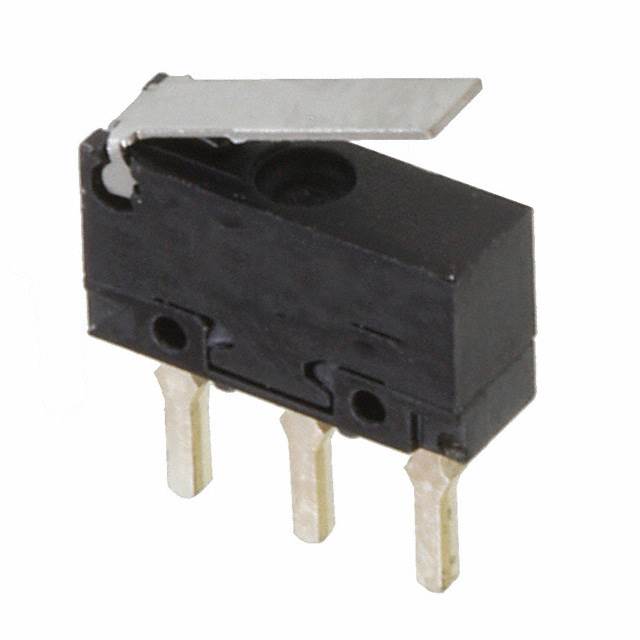

AV4424
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AV4424 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AV4424 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AV4424 |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 500MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.793 | $0.731 | $0.685 | $0.67 | $0.533 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.502 | $0.472 | $0.441 | $0.411 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AV4424 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 500MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95890 pcs | Data sheet | AV4 Switches |
| Category | Switches | Voltage Rating - DC | 30V |
| Termination Style | PC Pin | Switch Function | On-Mom |
| Series | AV4 | Release Force | - |
| Pretravel | 0.094" (2.4mm) | Packaging | Bulk |
| Overtravel | 0.015" (0.4mm) | Other Names | 255-3743 AV4424-ND |
| Operating Temperature | -25°C ~ 80°C | Operating Position | 0.228" (5.8mm) |
| Operating Force | 25gf | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 300,000 Cycles |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Electrical Life | 20,000 Cycles | Differential Travel | 0.027" (0.7mm) |
| Current Rating | 500mA (DC) | Circuit | SPDT |
| Actuator Type | Lever, Straight |
