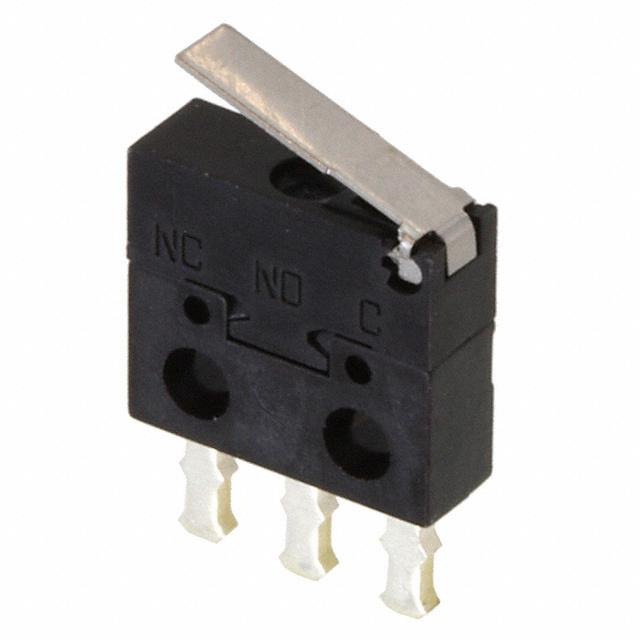

AV4024
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AV4024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AV4024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AV4024 |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 500MA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.82 | $0.758 | $0.71 | $0.695 | $0.552 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.521 | $0.489 | $0.458 | $0.426 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AV4024 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 500MA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87741 pcs | Data sheet | AV4 Switches |
| Category | Switches | Voltage Rating - DC | 30V |
| Termination Style | Solder Lug | Switch Function | On-Mom |
| Series | AV4 | Release Force | - |
| Pretravel | 0.094" (2.4mm) | Packaging | Bulk |
| Overtravel | 0.015" (0.4mm) | Other Names | 255-3747 AV4024-ND |
| Operating Temperature | -25°C ~ 80°C | Operating Position | 0.250" (6.4mm) |
| Operating Force | 25gf | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 300,000 Cycles |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Electrical Life | 20,000 Cycles | Differential Travel | 0.027" (0.7mm) |
| Current Rating | 500mA (DC) | Circuit | SPDT |
| Actuator Type | Lever, Straight |
