APT1212AX

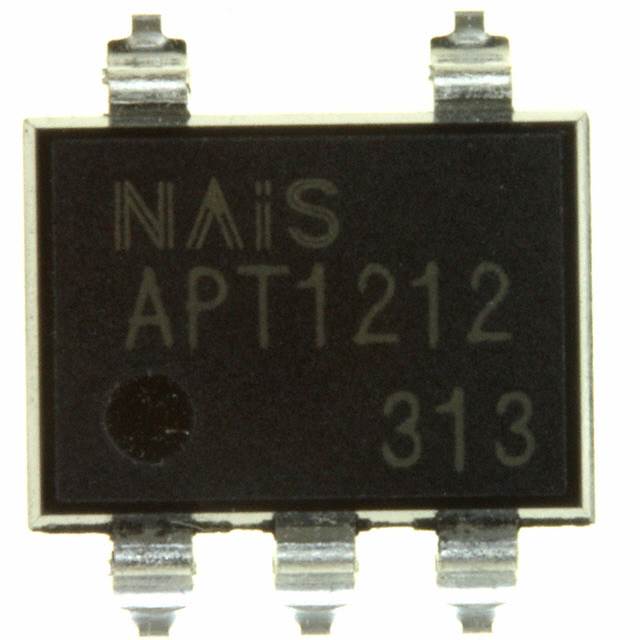

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT1212AX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT1212AX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT1212AX |
|---|---|
| Manufacturer | Panasonic |
| Description | OPTOISOLATOR 5KV TRIAC 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.279 | $0.263 | $0.253 | $0.248 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APT1212AX | Manufacturer | Panasonic |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRIAC 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76716 pcs | Data sheet | APT Phototriac Coupler Datasheet |
| Category | Isolators | Zero Crossing Circuit | Yes |
| Voltage - Off State | 600V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.21V | Turn On Time | 100µs (Max) |
| Supplier Device Package | 6-DIP Gull Wing | Static dV/dt (Min) | 500V/µs |
| Series | APT | Packaging | Tape & Reel (TR) |
| Package / Case | 5-SMD, Gull Wing | Output Type | Triac |
| Other Names | 255-5949-2 APT1212AX-ND |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP Gull Wing |
| Current - On State (It (RMS)) (Max) | 100mA | Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 3.5mA | Current - DC Forward (If) (Max) | 50mA |
| Approvals | cUR, VDE |
