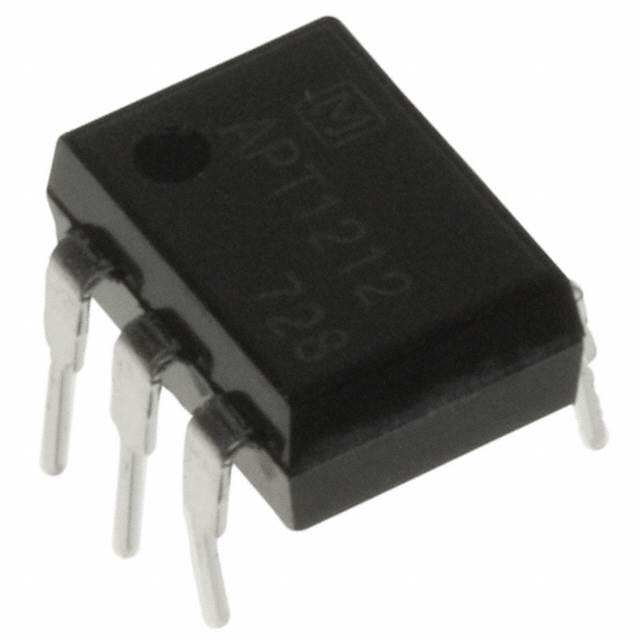

APT1212
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APT1212 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APT1212 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APT1212 |
|---|---|
| Manufacturer | Panasonic |
| Description | OPTOISOLATOR 5KV TRIAC 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.719 | $0.637 | $0.473 | $0.411 | $0.37 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.329 | $0.283 | $0.267 | $0.257 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | APT1212 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRIAC 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79156 pcs | Data sheet | APT Phototriac Coupler Datasheet |
| Category | Isolators | Zero Crossing Circuit | Yes |
| Voltage - Off State | 600V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.21V | Turn On Time | 100µs (Max) |
| Supplier Device Package | 6-DIP | Static dV/dt (Min) | 500V/µs |
| Series | APT | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) | Output Type | Triac |
| Other Names | 255-1519 255-1519-5 255-1519-ND |
Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP |
| Current - On State (It (RMS)) (Max) | 100mA | Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 3.5mA | Current - DC Forward (If) (Max) | 50mA |
| Approvals | cUR, VDE |
