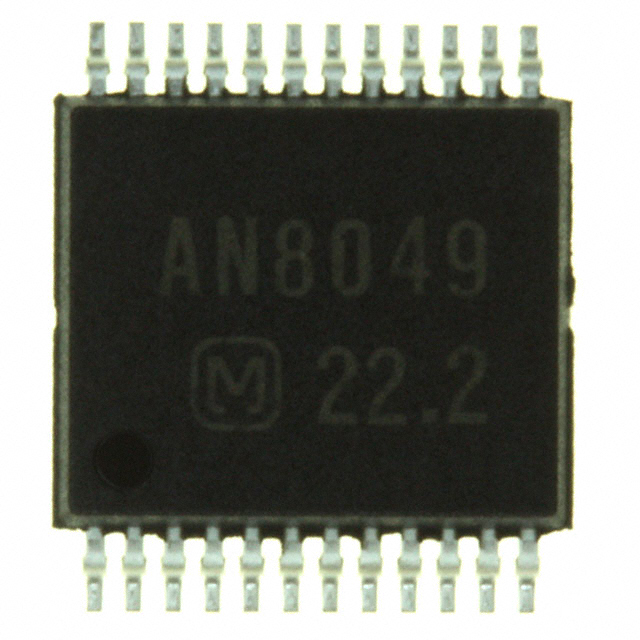

AN8049SH-E1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN8049SH-E1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AN8049SH-E1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN8049SH-E1 |
|---|---|
| Manufacturer | Panasonic |
| Description | IC REG CTRLR BUCK/BOOST 24SSOP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.083 | $0.968 | $0.871 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.794 | $0.716 | $0.643 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN8049SH-E1 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC REG CTRLR BUCK/BOOST 24SSOP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 57860 pcs | Data sheet | AN8049SH Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 14 V |
| Topology | Buck, Boost | Synchronous Rectifier | No |
| Supplier Device Package | 24-SSOP | Series | - |
| Serial Interfaces | - | Packaging | Cut Tape (CT) |
| Package / Case | 24-LFSOP (0.220", 5.50mm Width) | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive or Negative |
| Other Names | AN8049SHE1CT | Operating Temperature | -30°C ~ 85°C (TA) |
| Number of Outputs | 3 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Function | Step-Up/Step-Down |
| Frequency - Switching | 20kHz ~ 1MHz | Duty Cycle (Max) | 86% |
| Detailed Description | Buck, Boost Regulator Positive or Negative Output Step-Up/Step-Down DC-DC Controller IC 24-SSOP | Control Features | Enable, Soft Start |
| Clock Sync | No | Base Part Number | AN8049SH |
