AN8049FHN-EB

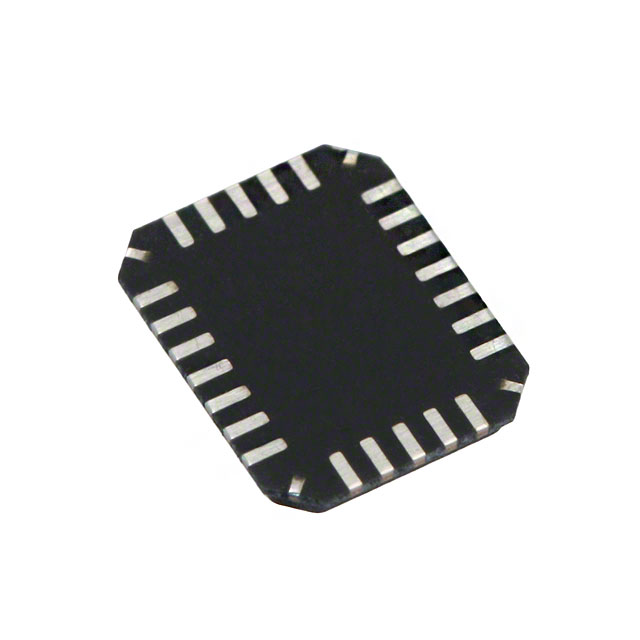

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN8049FHN-EB with confidence from Components-World.HK, 1 Year Warranty
Dowload AN8049FHN-EB Details in PDFSee Product Specifications for product details.
Buy AN8049FHN-EB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN8049FHN-EB |
|---|---|
| Manufacturer | Panasonic |
| Description | IC REG CTRLR BUCK/BOOST 24QFN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.413 | $1.263 | $1.136 | $1.035 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.934 | $0.838 | $0.707 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN8049FHN-EB | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC REG CTRLR BUCK/BOOST 24QFN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 48251 pcs | Data sheet | AN8049FHN Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 14 V |
| Topology | Buck, Boost | Synchronous Rectifier | No |
| Supplier Device Package | 24-QFN (5.2x4) | Series | - |
| Serial Interfaces | - | Packaging | Cut Tape (CT) |
| Package / Case | 24-VFQFN | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive or Negative |
| Other Names | AN8049FHNEBCT | Operating Temperature | -30°C ~ 85°C (TA) |
| Number of Outputs | 3 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Function | Step-Up/Step-Down |
| Frequency - Switching | 20kHz ~ 1MHz | Duty Cycle (Max) | 86% |
| Detailed Description | Buck, Boost Regulator Positive or Negative Output Step-Up/Step-Down DC-DC Controller IC 24-QFN (5.2x4) | Control Features | Enable, Soft Start |
| Clock Sync | No | Base Part Number | AN8049FHN |
