AN5870K

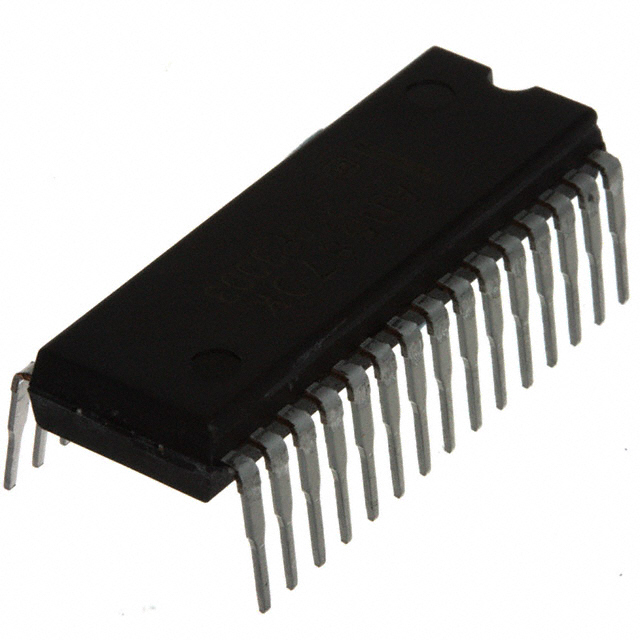

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN5870K with confidence from Components-World.HK, 1 Year Warranty
Dowload AN5870K Details in PDFSee Product Specifications for product details.
Buy AN5870K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN5870K |
|---|---|
| Manufacturer | Panasonic |
| Description | IC SWITCH VIDEO RGB 2:1 30SDIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 100 pcs | 260 pcs |
|---|---|---|---|---|---|
| $2.016 | $1.80 | $1.62 | $1.476 | $1.332 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | AN5870K | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC SWITCH VIDEO RGB 2:1 30SDIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 27887 pcs | Data sheet | AN5870K |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 4.5 V ~ 5.25, 10.5 V ~ 12.6 V |
| Voltage - Supply, Dual (V±) | - | Switch Circuit | - |
| Supplier Device Package | 30-SDIP | Series | - |
| Packaging | Tube | Package / Case | 30-SDIP (0.400", 10.16mm) |
| Operating Temperature | -20°C ~ 70°C (TA) | On-State Resistance (Max) | - |
| Number of Channels | 4 | Multiplexer/Demultiplexer Circuit | 2:1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | RGB | Detailed Description | Video Switch IC 4 Channel 30-SDIP |
| Base Part Number | AN5870K | Applications | Video |
| -3db Bandwidth | - |
