AN5275

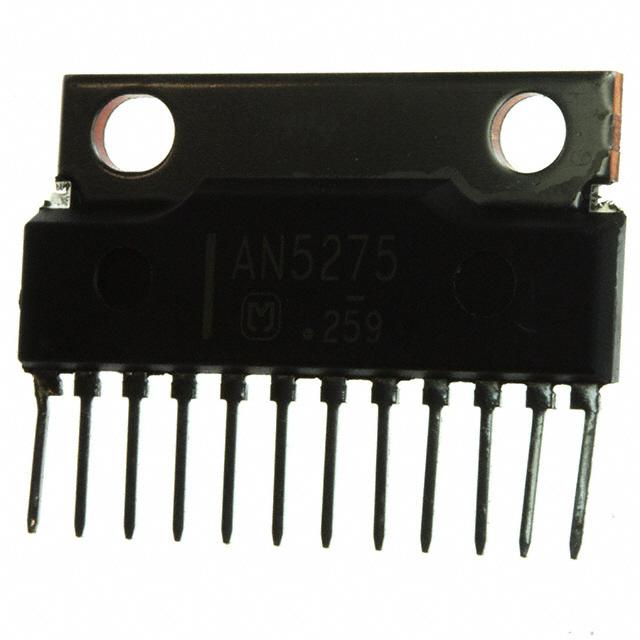

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN5275 with confidence from Components-World.HK, 1 Year Warranty
Dowload AN5275 Details in PDFSee Product Specifications for product details.
Buy AN5275 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN5275 |
|---|---|
| Manufacturer | Panasonic |
| Description | IC AUDIO AMP DUAL 15W SIL-12 W/F |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $1.276 | $1.14 | $1.026 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.935 | $0.844 | $0.757 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN5275 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC AUDIO AMP DUAL 15W SIL-12 W/F | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 40057 pcs | Data sheet | AN5275 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 10 V ~ 40 V |
| Type | Class AB | Supplier Device Package | 12-SIL |
| Series | - | Packaging | Bulk |
| Package / Case | 12-SIP + Tab | Output Type | 2-Channel (Stereo) |
| Operating Temperature | -25°C ~ 80°C (TA) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Max Output Power x Channels @ Load | 15W x 2 @ 8 Ohm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Features | Mute, Short-Circuit and Thermal Protection |
| Detailed Description | Amplifier IC 2-Channel (Stereo) Class AB 12-SIL | Base Part Number | AN5275 |
