AHN36012

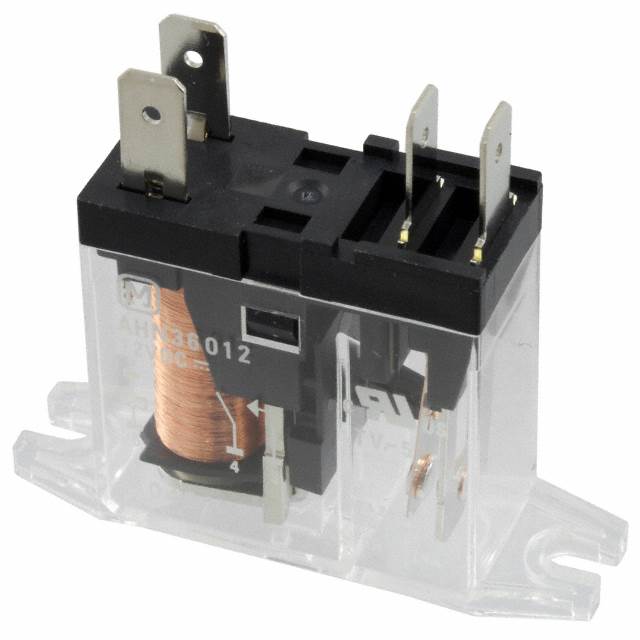

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHN36012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHN36012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHN36012 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 16A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.474 | $3.975 | $3.776 | $3.577 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.379 | $3.081 | $2.882 | $2.733 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHN36012 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 16A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12099 pcs | Data sheet | HN Relays (AHN) Datasheet |
| Category | Relays | Turn On Voltage (Max) | 8.4 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Switching Voltage | 250VAC, 30VDC - Max | Series | AHN |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-5849 AHN36012-ND |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 15ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount |
| Contact Rating (Current) | 16A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Power | 530 mW |
| Coil Current | 44.4mA |
