AHN36005

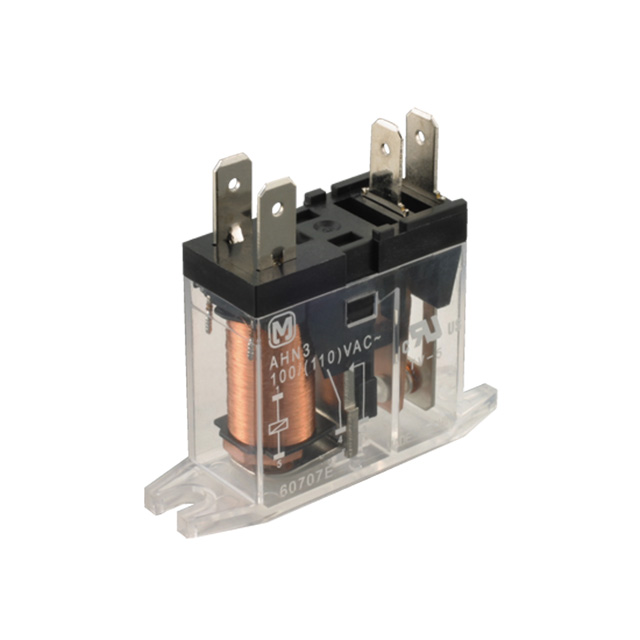

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHN36005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHN36005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHN36005 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 16A 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.346 | $3.864 | $3.671 | $3.477 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.284 | $2.994 | $2.801 | $2.656 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHN36005 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 16A 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14128 pcs | Data sheet | HN Relays (AHN) Datasheet |
| Category | Relays | Turn On Voltage (Max) | 3.5 VDC |
| Turn Off Voltage (Min) | 0.5 VDC | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Switching Voltage | 250VAC, 30VDC - Max | Series | AHN |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-5847 AHN36005-ND |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 15ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Chassis Mount |
| Contact Rating (Current) | 16A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 5VDC |
| Coil Type | Non Latching | Coil Power | 530 mW |
| Coil Current | 106mA |
