ADW1203HT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADW1203HT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADW1203HT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADW1203HT |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 16A 3V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.089 | $2.897 | $2.575 | $2.446 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.318 | $2.06 | $1.931 | $1.803 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADW1203HT | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 16A 3V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19521 pcs | Data sheet | ADW1 Series |
| Category | Relays | Turn On Voltage (Max) | 2.4 VDC |
| Turn Off Voltage (Min) | - | Termination Style | PC Pin |
| Switching Voltage | 277VAC - Max | Series | DW-H |
| Release Time | 15ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 255-5895 ADW1203HT-ND |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 15ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole |
| Contact Rating (Current) | 16A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 3VDC |
| Coil Type | Latching, Dual Coil | Coil Resistance | 22.5 Ohms |
| Coil Power | 400 mW | Coil Current | 133mA |
- Related products
- Related news
Related products
- Part#:
ADW1206HLW - Manufacturers:
Panasonic - Description:
RELAY GEN PURPOSE SPST 16A 75V - In Stock:
32423
- Part#:
ADW1203HLW - Manufacturers:
Panasonic - Description:
RELAY GEN PURPOSE SPST 16A 3V - In Stock:
31715
- Part#:
ADW1112HTW - Manufacturers:
Panasonic - Description:
RELAY GEN PURPOSE SPST 16A 12V - In Stock:
24009
- Part#:
ADW1124HTW - Manufacturers:
Panasonic - Description:
RELAY GEN PURPOSE SPST 16A 24V - In Stock:
24885
- Part#:
ADW1205HLW - Manufacturers:
Panasonic - Description:
RELAY GEN PURPOSE SPST 16A 5V - In Stock:
27552
- Part#:
ADW1205HTW - Manufacturers:
Panasonic - Description:
RELAY GEN PURPOSE SPST 16A 5V - In Stock:
16932
- Part#:

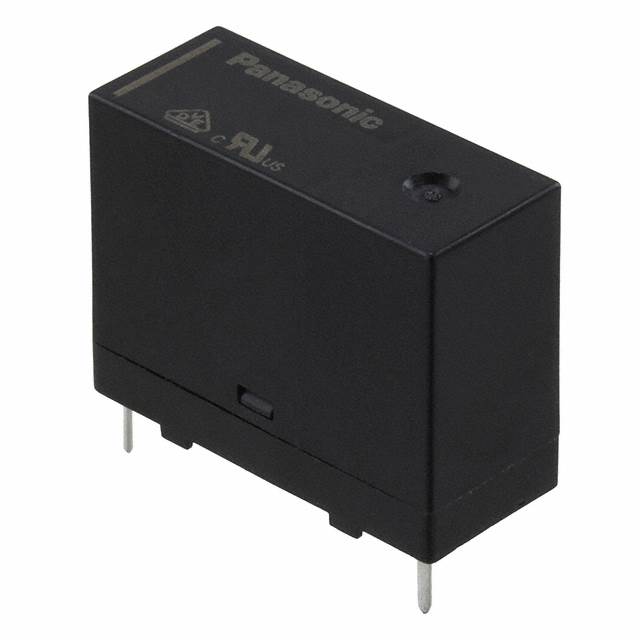

ADW1124HLW - Manufacturers:
