ADW1124W

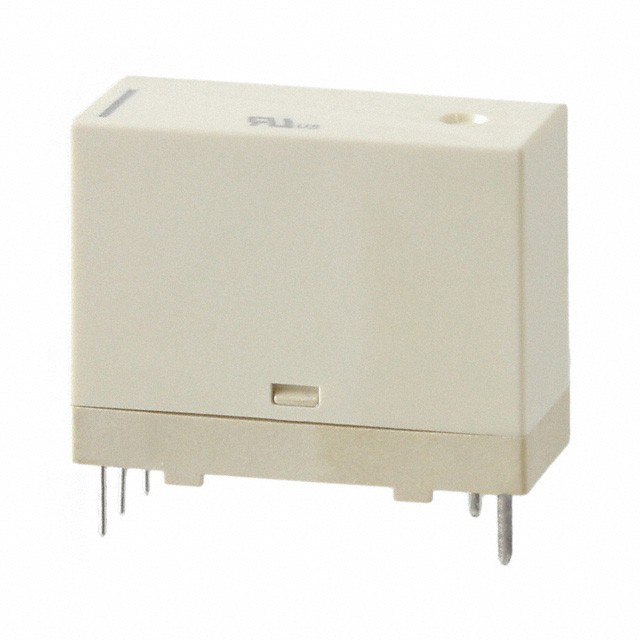

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADW1124W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADW1124W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADW1124W |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 8A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.081 | $2.887 | $2.566 | $2.438 | ||
| 100 pcs | 300 pcs | 500 pcs | 1000 pcs | ||
| $2.309 | $2.053 | $1.924 | $1.796 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADW1124W | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 8A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20205 pcs | Data sheet | DW (ADW1) Prod BriefADW1 Series |
| Category | Relays | Turn On Voltage (Max) | 19.2 VDC |
| Turn Off Voltage (Min) | - | Termination Style | PC Pin |
| Switching Voltage | 250VAC - Max | Series | DW-H |
| Release Time | 15ms | Relay Type | General Purpose |
| Packaging | Tray | Other Names | 255-5894 ADW1124W-ND |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 15ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Flux Protection | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole |
| Contact Rating (Current) | 8A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 24VDC |
| Coil Type | Latching, Single Coil | Coil Resistance | 2.88 kOhms |
| Coil Power | 200 mW | Coil Current | 8.3mA |
