ABS1512513

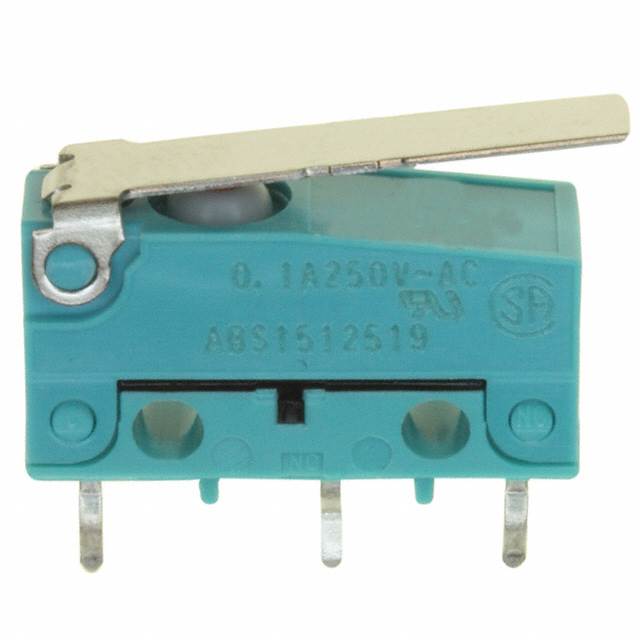

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ABS1512513 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ABS1512513 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ABS1512513 |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.285 | $1.186 | $1.112 | $1.087 | $0.865 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.815 | $0.766 | $0.716 | $0.667 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ABS1512513 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACT SPDT 100MA 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49801 pcs | Data sheet | ABS(BS) Switches Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | ABS |
| Release Force | 3.500gf | Pretravel | 0.110" (2.8mm) |
| Packaging | Bulk | Overtravel | 0.047" (1.2mm) |
| Other Names | 255-5823 | Operating Temperature | -40°C ~ 85°C |
| Operating Position | 0.345" (8.8mm) | Operating Force | 55gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mechanical Life | 5,000,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP50 - Dust Protected |
| Features | - | Electrical Life | 200,000 Cycles |
| Differential Travel | 0.031" (0.8mm) | Current Rating | 100mA (AC/DC) |
| Circuit | SPDT | Actuator Type | Lever, Straight |
