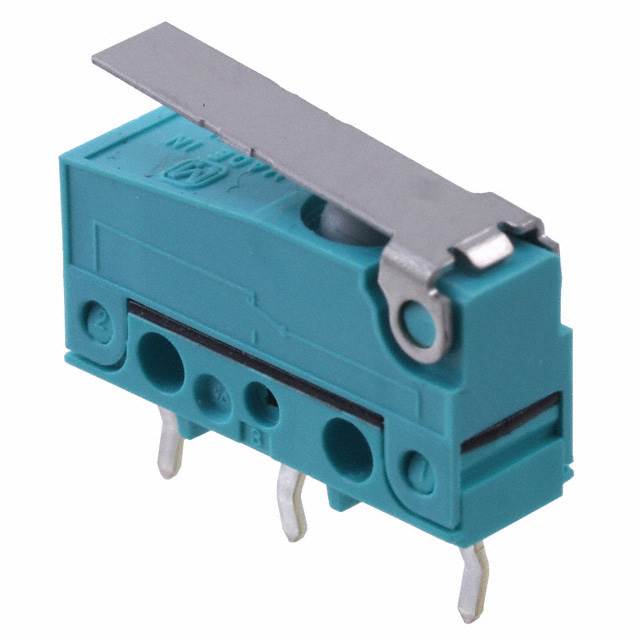

ABS1511509
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ABS1511509 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ABS1511509 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ABS1511509 |
|---|---|
| Manufacturer | Panasonic |
| Description | SWITCH SNAP ACTION SPDT 2A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.328 | $1.226 | $1.149 | $1.124 | $0.894 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.843 | $0.792 | $0.741 | $0.69 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ABS1511509 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 2A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57122 pcs | Data sheet | ABS(BS) Switches Datasheet |
| Category | Switches | Voltage Rating - DC | 30V |
| Voltage Rating - AC | 125V | Termination Style | PC Pin |
| Switch Function | On-Mom | Series | ABS |
| Release Force | 4.079gf | Pretravel | 0.100" (2.5mm) |
| Packaging | Tray | Overtravel | 0.032" (0.81mm) |
| Other Names | 255-3132 ABS1511509-ND |
Operating Temperature | -40°C ~ 85°C |
| Operating Position | 0.345" (8.8mm) | Operating Force | 60gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 5,000,000 Cycles | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP50 - Dust Protected |
| Features | - | Electrical Life | 50,000 Cycles |
| Differential Travel | 0.020" (0.5mm) | Current Rating | 2A (AC/DC) |
| Circuit | SPDT | Actuator Type | Lever, Straight |
