4SVPC560MX

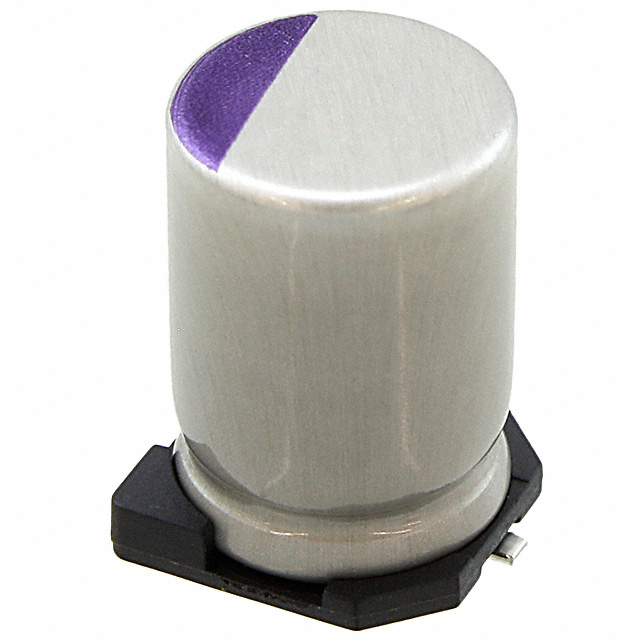

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4SVPC560MX with confidence from Components-World.HK, 1 Year Warranty
Dowload 4SVPC560MX Details in PDFSee Product Specifications for product details.
Buy 4SVPC560MX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4SVPC560MX |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM POLY 560UF 20% 4V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | 800 pcs | 1200 pcs | ||
|---|---|---|---|---|---|
| $0.389 | $0.324 | $0.303 | |||
| 2000 pcs | 4000 pcs | 10000 pcs | |||
| $0.292 | $0.281 | $0.28 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4SVPC560MX | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM POLY 560UF 20% 4V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67725 pcs | Data sheet | 4SVPC560MX View All SpecificationsSVPC Series Datasheet |
| Category | Capacitors | Voltage - Rated | 4V |
| Type | Polymer | Tolerance | ±20% |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Size / Dimension | 0.315" Dia (8.00mm) |
| Series | OS-CON™, SVPC | Ripple Current @ Low Frequency | 269mA @ 120Hz |
| Ripple Current @ High Frequency | 5.38A @ 100kHz | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Other Names | P16580TR | Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.472" (12.00mm) | ESR (Equivalent Series Resistance) | 9 mOhm |
| Detailed Description | 560µF 4V Aluminum Polymer Capacitor Radial, Can - SMD 9 mOhm 2000 Hrs @ 105°C | Capacitance | 560µF |
| Applications | General Purpose |
